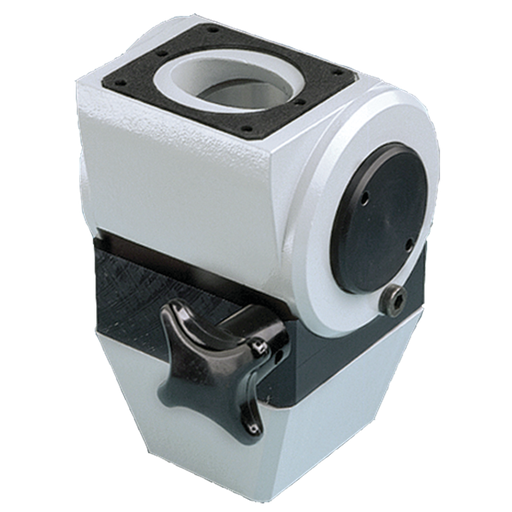

Product image for Hoffman CCS2STLG COMPACT Series 2 Swivel Tilt Straight, fits 45x 60mm, Lt Gray, Aluminum
Image thumbnail 0
Image thumbnail 1
Email

Hoffman CCS2STLG COMPACT Series 2 Swivel Tilt Straight, fits 45x 60mm, Lt Gray, Aluminum

Manufacturer: nVent Hoffman | Catalog # CCS2STLG | Codale Part # 461486
$1,876.21/ea
ea
Log in or register to view your price, purchase history, and more!
Experiencing long lead times. Please call for availability.
Primary Spec Sheet
Compact Series 2 Swivel Tilt Straight mounts between a vertical tube and the enclosure to provide both swivel and tilt options for the machine operator. Swivel allows 300-degree maximum rotation. Tilt allows infinite adjustment from horizontal to 30 degrees. Maximum load is 66 lb. (30 kg).

Technical Information

Applications
For Controls and Drives
Color Coding
RAL 7035
Material
Aluminum
Size
fits 45x60mm
Type
Straight

Manufacturer Information

Brand
nVent Hoffman
Sub Brand
Compact™

General Product Info

12-Digit UPC
783510418892
Color
Light Gray
Finish
RAL 7035
Product UPC
78351041889
Used With
Compact Pendant Arm Series 2
Weight
6.7 lb

Dimensions

Height
1.77 Inch
Length
6.3 Inch
Width
2.36 in
DISK UNSPSC
39121325
Features
  • Coupling can rotate 300 degrees and tilt from horizontal to 30-degree
  • Installation hardware, mounting fasteners and gasket included
  • Assembled Compact Series 2 HMI Arm System has a max weight load of 101 lb. (45.8 kg)
