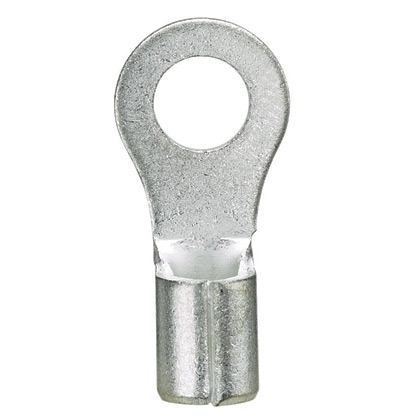

Product image for Panduit P18-10R-M Ring Terminal, Bare, 16-22 AWG, #10 Stud, PK1000
Image thumbnail 0
Image thumbnail 1
Email

Panduit P18-10R-M Ring Terminal, Bare, 16-22 AWG, #10 Stud, PK1000

Manufacturer: PANDUIT | Catalog # P18-10R-M | Codale Part # 4616935
$399.59/m (1000 ea)
ea
Log in or register to view your price, purchase history, and more!
Experiencing long lead times. Please call for availability.
Buy American Compliant Buy American Compliant Primary Spec Sheet Product Catalog Page
The P18-10R-M Pan-Term® Terminal is a non-insulated, ring terminal. Brazed seam protects terminal barrel from splitting during the crimp process. Internal barrel serrations assure good wire contact and maximum tensile strength.

Technical Information

Barrel Length
0.28 in
Barrel Type
Brazed Seam
Color Coding
Silver
Conductor Size
18 AWG
Enclosure
Ring shape
Material
Copper
Max Operating Temperature
150 degrees C
Min Operating Temperature
221 degrees F
Size
#10
Tc Connection
Standard
Temperature Rating
302 F
Tongue Thickness
0.03 in
Tongue Width
0.31 in
Type
Ring Terminal
Voltage
2,000 Volt
Wire Size
18 AWG

Packaging

Pkg Qty
1000

Manufacturer Information

Brand
Panduit Corp.
Sub Brand
Pan-Term®

General Product Info

12-Digit UPC
074983802074
Color
NA
Finish
Tin Plated
Product UPC
07498380207

Dimensions

Outer Diameter
0.14 in
Overall Length
0.71 in
Width
0.31 in

Certifications and Compliance

Buy American Compliant
Y
Country of Origin
Mexico
Standards and Certifications
  • Standards Met: cULus Listed 587H E52164, CSA Certified LR31212
