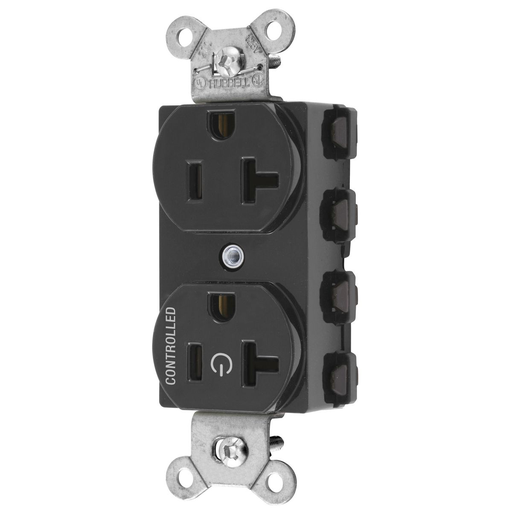

Hubbell SNAP5362C1BK SnapConnect® 1/2 CONTROLLED 20A 125, BK

Manufacturer: Hubbell Wiring Device-Kellems | Catalog # SNAP5362C1BK | Codale Part # 4618654
$11.65/ea
ea
Log in or register to view your price, purchase history, and more!
Experiencing long lead times. Please call for availability.
Primary Spec Sheet Product Catalog Page
Straight Blade Devices, Receptacles, Duplex, SNAPConnect, Split Circuit, Half Controlled, 20A 125V, 2-Pole 3-Wire Grounding, 5-20R, Nylon, Black

Technical Information

Amperage
20 Amp
Applications
SNAPConnect® Permanently Marked
Conductor Size
12 AWG
Current
20 Amp
Dielectric Strength
Withstands 2,000V minimum
Horsepower
1 hp
Material
Nylon
NEMA
5-20R
Number of Conductors
3
Number of Poles
2-2 Pole
Number of Wires
3,3
Operating Temperature
-40 degrees C
Size
3.28 in x 1.64 in x 1.1 in
Style
Smooth Face
Tc Connection
Connectorized
Type
Non-Reversing
Voltage
125 Volt
Wattage
2500 Watt
Wire Size
12 AWG

Manufacturer Information

Brand
Hubbell Incorporated
Sub Brand
Straight Blade Receptacle

General Product Info

12-Digit UPC
783585555256
Color
Black
Environmental Conditions
Indoor Dry Unless Protected By Additional Means
Product Series
Permanently Marked Receptacles
Product UPC
78358555525
Weight
0.2 lb

Dimensions

Height
1.1 Inch
Length
3.28 Inch
Width
1.64 in

Certifications and Compliance

Country of Origin
Mexico
Features
  • Audible SNAP, indicates solid connection
  • Reduces installation time
  • Split Circuit, Half Controlled
  • Power symbol is clearly visible
  • One Controlled Face, Split Circuit Hot Tab
