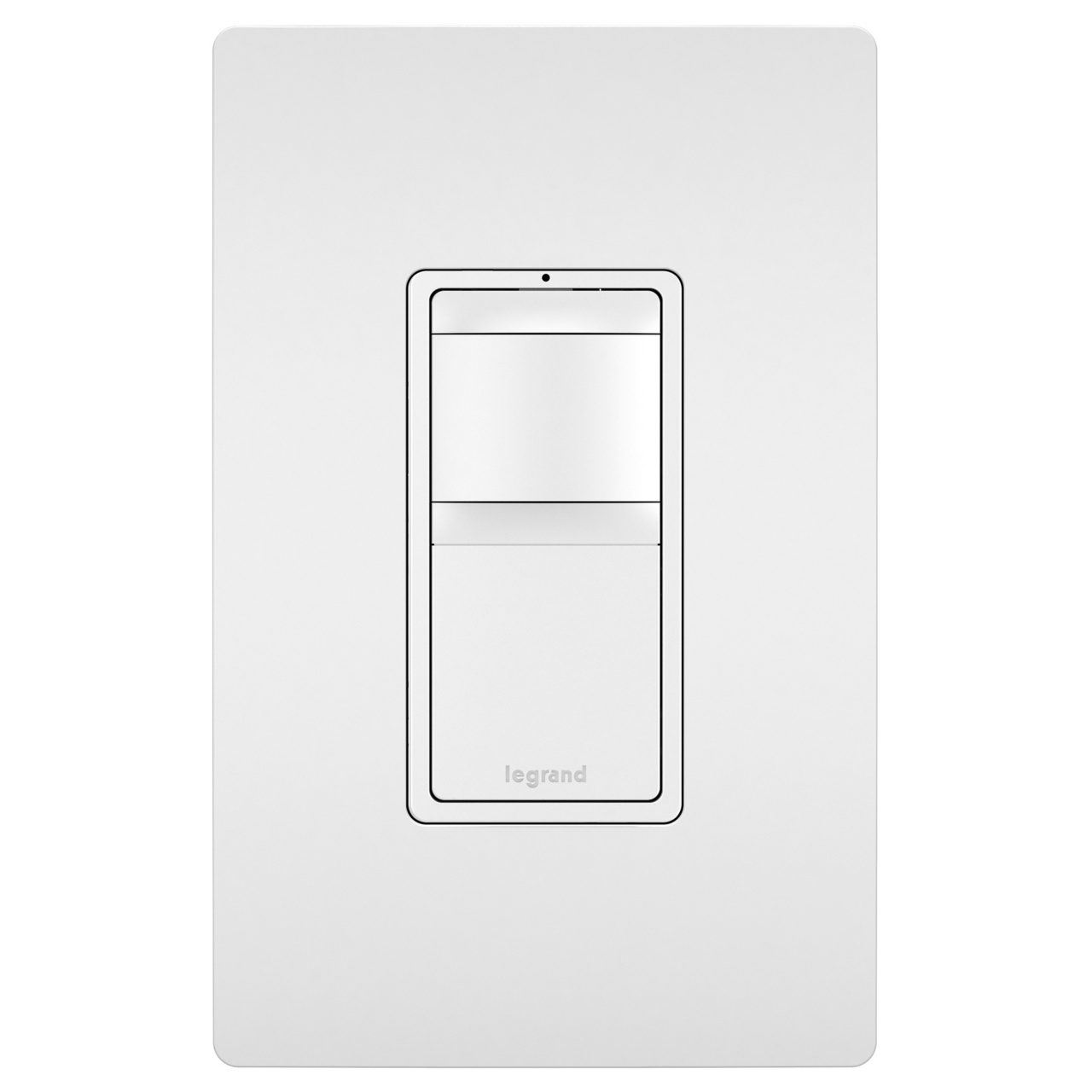

P&S RRW600UW RADIANT OCC SENSOR 2-W

Manufacturer: Legrand Pass & Seymour | Catalog # RRW600UW | Codale Part # 4620612
$54.17 /ea
ea
Log in or register to view your price, purchase history, and more!
Experiencing long lead times. Please call for availability.
Primary Spec Sheet
Simplify control while saving energy, with the radiant® Occupancy Sensor. Automatically turning the light on when someone enters a room, and shutting it off when the room is empty, this sensor includes an adjustable timed delay for shut off, as well as additional settings for more flexible control. Part of the radiant® Collection, it features clean lines and smooth paddle action for a sophisticated touch. Made exclusively for use with screwless Wall Plates from the radiant® Collection, sold separately.

Technical Information

Amperage
5 Amp
Applications
Hospitality,Light Commercial,Multi-Dwelling Unit,Residential
Indoor Outdoor
Indoor
Input Voltage
120 V
Load Rating
120V 600VA (Fluorescent), 120V 5A 600W (LED), 120V 600VA (MLV), 120V 600W (Halogen), 120V 600W (Incandescent), 120V 5A 600W (CFL), 120V 5A (ELV)
Load Type
CFL,Fan Motor,Halogen,Incandescent:Fluorescent,LED
Material
Polycarbonate,Steel
Mounting Type
Wall Box
Number of Poles
3
Sensing Range
20 sq-ft
Sensor Type
Occupancy, Vacancy
Switch Type
Motion Sensor,SofTap
Type
Switch
Voltage
120 V
Wattage
600 W
Wire Size
10 AWG

Manufacturer Information

Brand
Legrand
Sub Brand
radiant

General Product Info

12-Digit UPC
785007445787
Color
White
Finish
Satin
Product UPC
78500744578

Dimensions

Depth
1.88 Inch
Height
2.63 Inch
Warranty Length
Limited Lifetime
Width
1.69 in

Certifications and Compliance

Country of Origin
China
Features
  • Passive infrared (PIR) sensor switch technology with 180° coverage up to 600 sq. ft. Rated for up to 600W (5A) of LED lighting.
  • Works with virtually any bulb/fixture, including: LED, incandescent, fluorescent, compact fluorescent (CFL), magnetic low-voltage (MLV) and electronic low-voltage (ELV), 1/6 hp.
  • Turn the light on when you enter, and let it turn itself off automatically after you leave for true convenience. Perfect for bathrooms, hallways, closets, garages, and more.
  • Locator light illuminates when switch is off, emitting a soft glow to help you find it in the dark.
  • Features an adjustable time delay to off after no motion is detected. Delay settings range from 30 seconds to 20 minutes after the room is vacated (default 5 minute delay).
  • Auto ON/Auto OFF functionality as default. Easily configurable to Manual ON/Auto OFF to meet any need or preference in the home.
  • Replace any basic light or fan switch in 15 minutes or less. Supports single pole and multi-location installs. No neutral required.
  • Complete the look with a sleek, screwless radiant® Wall Plate, and coordinate with other designer switches and outlets available from the radiant® Collection.
  • More color options available to fit any style, including finishes to match current hardware and lighting trends.
Certifications
  • UL Listed
  • cULus Listed
