Burndy YGHP58C2W2 High Conductivity Cu Compression Ground Tap Connector, 1/2" - 5/8" Rod Dia, #6 - #2 Sol(Tap)

Manufacturer: Hubbell-Burndy | Catalog # YGHP58C2W2 | Codale Part # 462421
$77.22/ea
ea
Log in or register to view your price, purchase history, and more!
2 available

For Delivery

Not in local stock *
Check your local branch
Buy American Compliant Buy American Compliant Primary Spec Sheet
High Conductivity Cu Compression Ground Tap Connector, 1/2" - 5/8" Rod Dia, #6 - #2 Sol(Tap).

Technical Information

Applications
For Ground Rod, Direct Burial In Earth And Concrete
Conductor Size
2 AWG
Connection Type
Tap
Material
Copper
Plated?
No
Plating Type
Unplated
Size

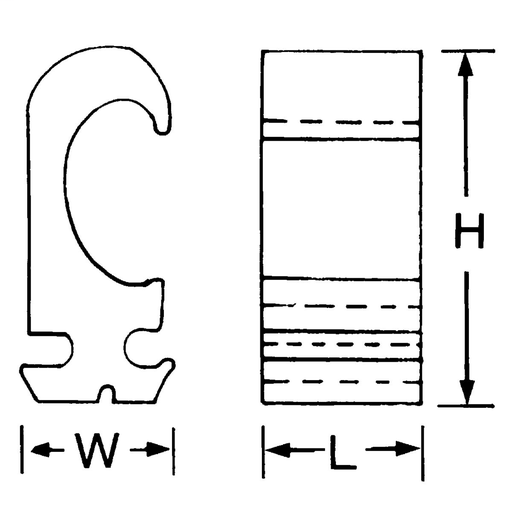

1.90 IN Height X 0.94 IN Width X 0.75 Length
Tap Size
6 - 2 AWG Solid Copper
Type
Taps

Manufacturer Information

Brand
Hubbell Incorporated
Sub Brand
Burndy

General Product Info

12-Digit UPC
781810002186
Product UPC
78181000218
Weight
0.2600 lb

Dimensions

Height
1.9 Inch
Length
3/4 Inch
Width
0.94 in

Certifications and Compliance

Buy American Compliant
Y
Country of Origin
USA
CSA
Yes
Features
  • Tap A accepts a continuous run on tap conductor
  • Tap B accepts a tap conductor only
  • One connector style can be used for many applications reducing number of connectors needed in inventory
  • High conductivity wrought copper extrusion, idential material to the conductor, minimizes resistance and voltage drop
  • UL467 Listed
  • Acceptable for direct burial in earth and concrete
  • Prefilled with PENETROX™ compound and strip sealed
