Panduit P2-38R-T Ring Terminal, Bare, 2 AWG, 3/8" Stud, PK200

Manufacturer: PANDUIT | Catalog # P2-38R-T | Codale Part # 4625447
$3,491.23/m (1000 ea)
ea
Log in or register to view your price, purchase history, and more!
Experiencing long lead times. Please call for availability.
Buy American Compliant Buy American Compliant Primary Spec Sheet Product Catalog Page

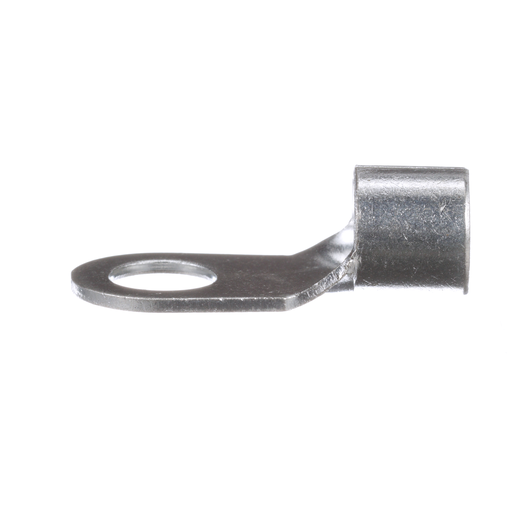

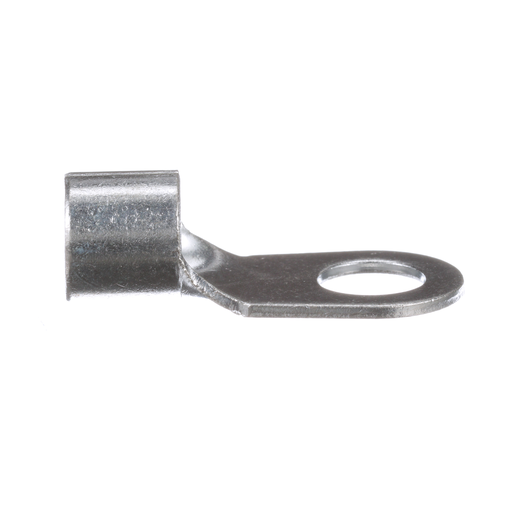

The P2-38R-T Pan-Term® Terminal is a non-insulated, ring terminal. Brazed seam protects terminal barrel from splitting during the crimp process. Internal barrel serrations assure good wire contact and maximum tensile strength.

Technical Information

Barrel Length
1.12 in
Barrel Type
Brazed Seam
Color Coding
Metallic
Conductor Size
2 AWG
Enclosure
Ring shape
Material
Copper
Max Operating Temperature
150 degrees C
Size
3/8"
Tc Connection
Standard
Temperature Rating
302 F
Tongue Thickness
0.06 in
Tongue Width
0.68 in
Type
Ring Terminal
Voltage
2,000 Volt
Wire Size
2 AWG

Packaging

Pkg Qty
200

Manufacturer Information

Brand
Panduit Corp.
Sub Brand
Pan-Term®

General Product Info

12-Digit UPC
074983870530
Color
NA
Finish
Tin Plated
Product UPC
07498387053

Dimensions

Outer Diameter
0.48 in
Overall Length
1.46 in
Width
0.68 in

Certifications and Compliance

Buy American Compliant
Y
Country of Origin
Mexico
Standards and Certifications
  • Standards Met: cULus Listed 587H E52164, CSA Certified LR31212
