Hubbell CS6370 Locking Receptacle, 50A 125V, 2P3W

Manufacturer: Hubbell Wiring Device-Kellems | Catalog # CS6370 | Codale Part # 4632165
$69.56/ea
ea
Log in or register to view your price, purchase history, and more!
Experiencing long lead times. Please call for availability.
Primary Spec Sheet Product Catalog Page Installation / Instruction Manual
Locking Devices, Twist-Lock®, Industrial, Receptacle, 50A 125V, 2-Pole 3-Wire Grounding, Non-NEMA, Screw Terminal, Black

Technical Information

Amperage
50 Amp
Applications
Heavy Duty Industrial
Conductor Size
10-6 AWG
Current
50 Amp
Dielectric Strength
Withstands 2,000V minimum
Face Material
Phenolic
Grade
Industrial
Grounding
Grounding
Material
Composite
Mounting Type
Screw, Flush, Inner Lying
Number of Phases
1 Phase
Number of Poles
2 Pole
Number of Wires
3 Wire
Operating Temperature
-40 degrees C

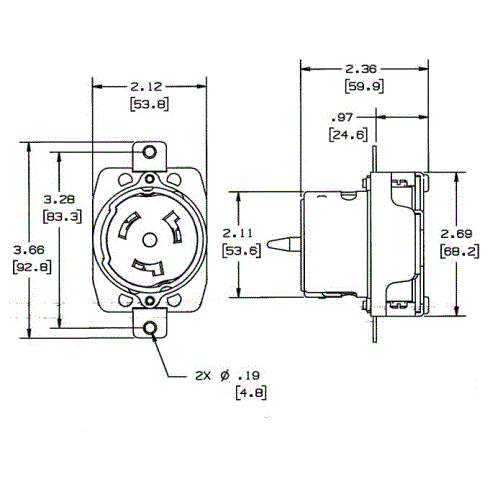

Size
2.69 in x 2.12 in x 2.36 in
Standard
CSA,E2186,UL
Tc Connection
Screw Terminal
Type
Heavy Duty
Voltage
125 Volt
Wattage
6250 Watt
Wire Count
3
Wire Size
10-6 AWG

Manufacturer Information

Brand
Hubbell Wiring Device-Kellems
Sub Brand
Twist-Lock®

General Product Info

12-Digit UPC
783585871301
Color
Black
Environmental Conditions
Indoor Dry Unless Protected by Additional Means
Product UPC
78358587130
Weight
0.90 lb

Dimensions

Height
2.36 Inch
Length
2.69 Inch
Width
2.12 in

Certifications and Compliance

Country of Origin
Puerto Rico
Features
  • Thermoset construction offers high heat resistance
  • Armored housing provides superior impact resistance
  • One piece contacts provide low operating temperatures
  • Standard, Self Grounding
