Panduit DV18-188B-CY Female Disconnect, Vinyl Barrel Insulated, 22 - 18 Awg, .187 X .020 Tab Size, Butted Seam

Manufacturer: PANDUIT | Catalog # DV18-188B-CY | Codale Part # 4635039
$179.38/ea (100 ea)
ea
Log in or register to view your price, purchase history, and more!
Experiencing long lead times. Please call for availability.
Buy American Compliant Buy American Compliant Primary Spec Sheet Product Catalog Page

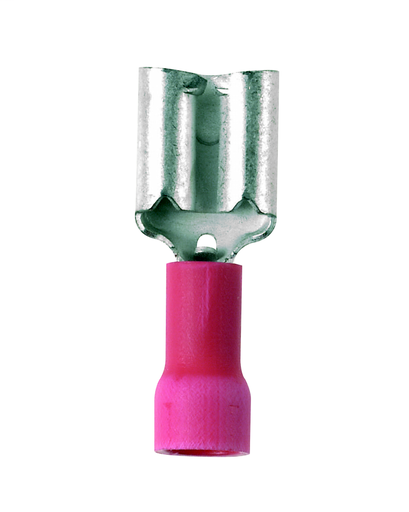

The vibration resistant female disconnect is made of brass and is tin-plated. It is barrel insulated in red vinyl housing. It has a tab size of 0.187 x 0.02" (4.8 x 0.5 mm) and supports a wire range of 22-18 AWG (0.5-1.0 mm.). It is 0.76" (19.3 mm) long and 0.23" (5.8 mm) wide. The disconnect has a funnel entry barrel configuration and a butted seam barrel. It comes in bottles of 100.

Technical Information

Barrel Type
Butted Seam
Color Coding
Red
Conductor Size
18 AWG
Material
Brass
Max Operating Temperature
105 degrees C
Standard
CSA,E2186,UL
Tc Connection
Funnel Entry
Temperature Rating
221 degrees F
Type
Loose-Piece
Voltage
600 Volt
Wire Size
22-16 AWG

Packaging

Pkg Qty
100

Manufacturer Information

Brand
Panduit Corp.
Sub Brand
Pan-Term®

General Product Info

12-Digit UPC
074983685578
Color
Red
Finish
Tin Plated
Product Type
Terminals
Product UPC
07498368557
UNSPSC
39121409

Dimensions

Height
0.1 Inch
Length
0.76 Inch
Overall Length
0.75 in
Width
.23 in

Certifications and Compliance

ARRA Compliant
Yes
Buy American Compliant
Y
CE Compliant
No,No
Country of Origin
Mexico
Hazmat Flag
No
