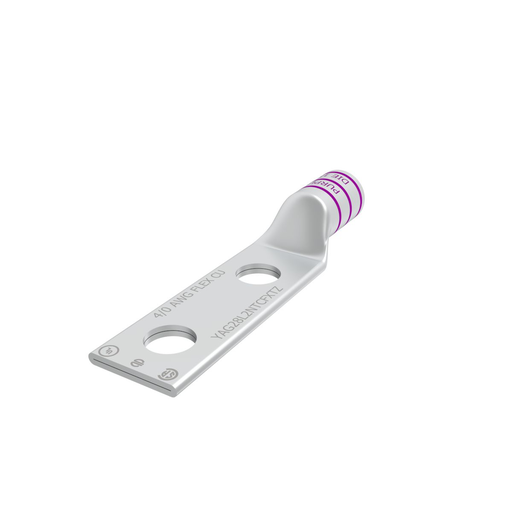

Product image for BUR YAG28L2NTCFXTZ CU,4/0AWG/FLEX,2
Image thumbnail 0
Image thumbnail 1
Image thumbnail 2
Email

BUR YAG28L2NTCFXTZ CU,4/0AWG/FLEX,2

Manufacturer: Hubbell-Burndy | Catalog # YAG28L2NTCFXTZ | Codale Part # 4637734
$59.13/ea
ea
Log in or register to view your price, purchase history, and more!
Experiencing long lead times. Please call for availability.
Primary Spec Sheet
4/0 Flex G,H,I,K,M,DLO, 4/0 AWG CU, Two Hole, 1/2 Stud Size, 1-3/4 Standard Barrel, Internal Chamfer, Tin-Zinc Plated, UL/CSA, 90.C, Up to 35kV, Purple Color Code, 15 Die Index.

Technical Information

Applications
The use of Tin-Zinc is becoming more prevalent;we are seeing this used in appliances, aerospace, automotive, electrical connectors, marine equipment, mining, and other industries
Color Coding
Purple
Conductor Material
COPPER
Conductor Size
4/0 AWG
Connection Type
Standard Barrel
Material
Copper,Zinc
Number of Holes
2 Hole
Type
Cable to Flat
Wire Size
0000 AWG

Manufacturer Information

Brand
Hubbell Incorporated
Sub Brand
Burndy

General Product Info

12-Digit UPC
621945555846
Finish
Tin-Zinc
Product UPC
62194555584

Dimensions

Hole Size
0.56 in
Length
4.65 Inch
Thickness
0.15 in
Width
1.10 in

Certifications and Compliance

Country of Origin
USA
CSA
Yes
Features
  • No inspection window is ideal for more corrosive environments as the barrel transition is not open
  • Barrel is designed with an internal chamfer at the wire entry to ensure smooth insertion of the wire, preventing possible damaging of the wire strands during insertion
  • 45° and 90° angular lugs are available
  • please contact Customer Service
  • Tin-Zinc plated for battery connectors or other heavy duty equipment, reduce the corrosion from lead/acid batteries
  • Connectors are clearly marked with stamping and barrel color coding
  • Connectors accommodate both Flex and Code Wire
