HCI SNAP2182RNA SNAP2CONNECT2 DECO

Manufacturer: Hubbell Wiring Device-Kellems | Catalog # SNAP2182RNA | Codale Part # 4639257
$37.88/ea
ea
Log in or register to view your price, purchase history, and more!
Experiencing long lead times. Please call for availability.
Primary Spec Sheet

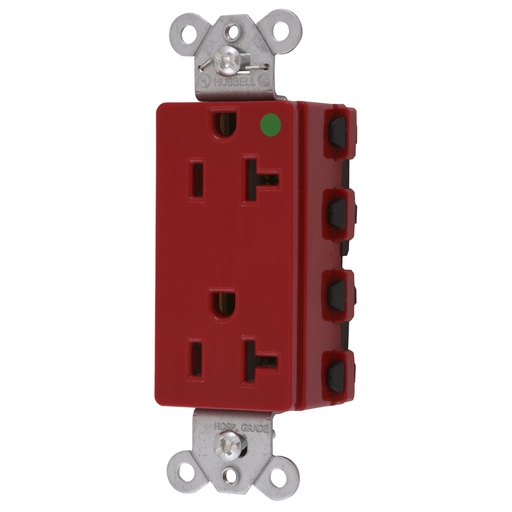

Straight Blade Devices, Receptacles, Decorator Duplex, SNAPConnect 2 Hospital Grade, 2-Pole 3-Wire Grounding, 20A 125V, 5-20R, Red, Single Pack, USA.

Technical Information

Amperage
20 Amp
Applications
Hospital Grade
Current
20 Amp
Dielectric Strength
Withstands 2,000V minimum
Material
Nylon
NEMA
5-20R
Number of Phases
1 Phase
Number of Poles
2 Pole
Number of Wires
3 Wire
Operating Temperature
-40 degrees C
Size
3.28 in x 1.64 in x 1.1 in
Standard
C22.2,CSA,Fed. Spec. W-C-596,NEMA® WD-6,No. 42 File 285,UL,UL498 File No. E2186
Style
Style Line Decorator
Tc Connection
Connectorized
Type
Traditional
Voltage
125 Volt
Wattage
2500 Watt
Wire Size
12 AWG

Manufacturer Information

Brand
Hubbell Wiring Device-Kellems
Sub Brand
Straight Blade

General Product Info

12-Digit UPC
783585540399
Color
Red
Environmental Conditions
Indoor Dry Unless Protected by Additional Means
Product UPC
78358554039

Dimensions

Height
1.1 Inch
Length
3.28 Inch
Width
1.64 in
Features
  • Self-grounding clip makes installation ease
  • Quick Connect- SNAPConnect, USA Product
  • Audible SNAP, indicates solid connection
  • Reduces installation time
  • Fully insulated design
Industry Standard(s)
  • CSA Certified, C22.2, No. 42 File 285
  • Fed. Spec. W-C-596
  • NEMA® WD-6 Compliant
  • UL Listed to UL498 File No. E2186
