HWDK SNAP2182RL SNAP2CONNECT2 DECO

Manufacturer: Hubbell Wiring Device-Kellems | Catalog # SNAP2182RL | Codale Part # 4639261
$49.14 /ea
ea
Log in or register to view your price, purchase history, and more!
Experiencing long lead times. Please call for availability.
Primary Spec Sheet Product Catalog Page Installation / Instruction Manual

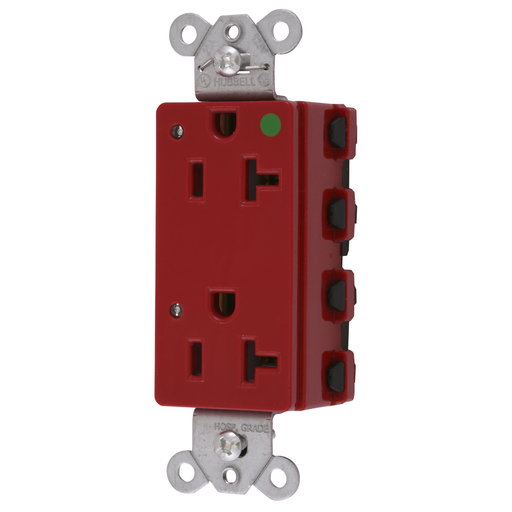

Straight Blade Devices, Receptacles, Style Line Decorator, SNAPConnect®, Hospital Grade, LED Indicator, 20A 125V, 2-Pole 3- Wire Grounding, 5-20R, Nylon, Red

Technical Information

Amperage
20 Amp
Applications
Hospital Grade
Base Material
PBT,PBT
Conductor Size
12 AWG
Contact Material
Brass
Current
20 Amp
Dielectric Strength
Withstands 2,000V minimum
Enclosure Material
Stainless Steel
Face Material
Nylon,Nylon
Flamability Class
UL 94V-2
Grade
Hospital
Horsepower
1 hp
Material
Nylon
NEMA
5-20R
Number of Phases
1 Phase
Number of Poles
2-2 Pole
Number of Wires
3,3
Operating Temperature
-40 degrees C

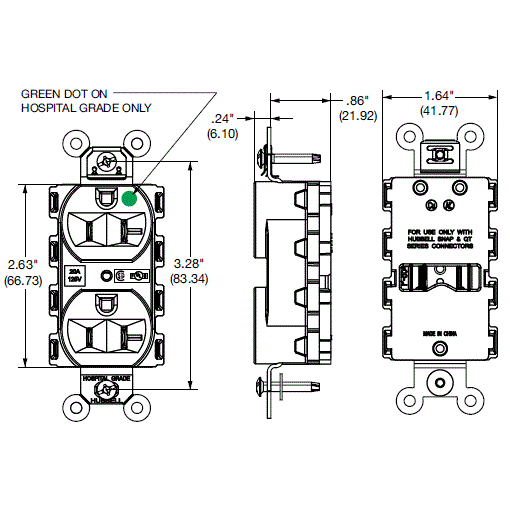

Size
3.28 in x 1.64 in x 1.1 in
Standard
C22.2,CSA,Fed. Spec. W-C-596,NEMA® WD-6,No. 42 File 285,UL,UL498 File No. E2186
Style
Style Line Decorator
Tc Connection
Connectorized
Type
Non-Reversing
Voltage
125 Volt
Wattage
2500 Watt
Wire Count
3
Wire Size
12 AWG

Manufacturer Information

Brand
Hubbell Incorporated
Sub Brand
Straight Blade Devices

General Product Info

12-Digit UPC
783585248691
Color
Red
Environmental Conditions
Indoor Dry Unless Protected By Additional Means
Product Series
Hospital Grade
Product UPC
78358524869
Weight
0.2 lb

Dimensions

Height
1.1 Inch
Length
3.28 Inch
Width
1.64 in

Certifications and Compliance

Country of Origin
USA
Features
  • Audible SNAP, indicates solid connection
  • Reduces installation time
  • Fully insulated design
  • Quick Connect- SNAPConnect®, LED Indicator, USA Product
