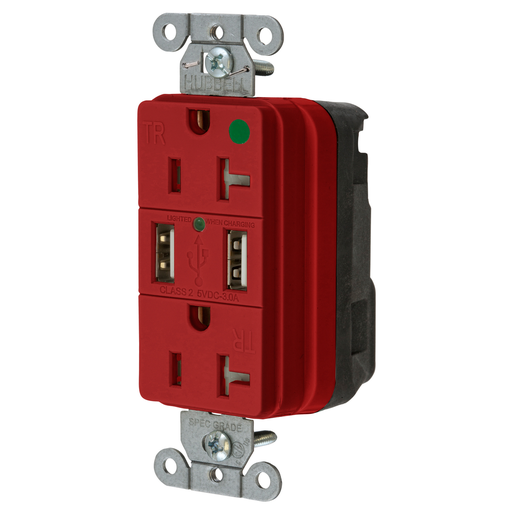

Hubbell SNAP8300USBR USB CHGR SNAP HG 20A125V DUP 3A5V PT RD

Manufacturer: Hubbell Wiring Device-Kellems | Catalog # SNAP8300USBR | Codale Part # 4639273
$65.37/ea
ea
Log in or register to view your price, purchase history, and more!
Experiencing long lead times. Please call for availability.
Primary Spec Sheet Product Catalog Page Installation / Instruction Manual
Straight Blade Devices, Receptacles, Decorator, Duplex, Hospital Grade, SNAPConnect 2, 2) 3 Amp 5 Volt USB Ports, 20A 125V AC, 2-Pole 3-Wire Grounding, 5-20R, Red

Technical Information

Amperage
20 Amp
Base Material
RTP,RTP
Conductor Size
14-10 AWG
Contact Material
Plated Copper
Current
20 Amp
Face Material
RTP,RTP
Flamability Class
UL 94V-2
Horsepower
1 hp
NEMA
5-20R
Number of Phases
1 Phase
Number of Poles
2 Pole
Number of Wires
3 Wire
Operating Temperature
-40 degrees C
Standard
CETLus,UL498
Style
Style Line Decorator
Tamper Resistant?
Yes
Voltage
125 Volt
Wattage
1875 Watt
Wire Count
3
Wire Size
14-10 AWG

Manufacturer Information

Brand
Hubbell Incorporated

General Product Info

12-Digit UPC
883778305610
Color
Red
Product Series
Hospital Grade
Product UPC
88377830561

Dimensions

Height
1.8 Inch
Length
3.28 Inch
Width
1.77 in

Certifications and Compliance

Country of Origin
China
Features
  • Two USB ports 3 Amp, 5V DC, type A, class 2.0
  • Tamper-Resistant decorator duplex receptacle
  • Green LED indicator to show USB power available
  • Compatible with USB 1.1/2.0/3.0 devices, including Apple® products
  • SNAPConnect®, Style Line, Tamper-Resistant, two USB type 2.0 ports 3 Amp, 5 Volt DC
