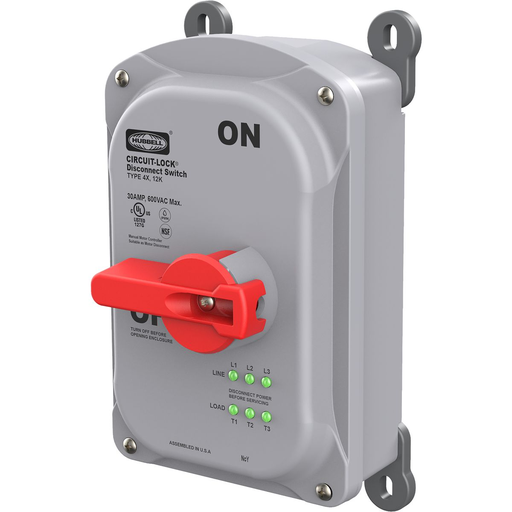

HWDK HBLDS30P NM SLOPED DISC,30A UN

Manufacturer: Hubbell Wiring Device-Kellems | Catalog # HBLDS30P | Codale Part # 4639806
$613.17/ea
ea
Log in or register to view your price, purchase history, and more!
4 available

For Delivery

Not in local stock *
Check your local branch
Primary Spec Sheet
Industrial Grade, Motor Disconnect, Unfused, 3 Pole, 30A 600V AC, Screw Terminals, IP69k, NEMA Type 4X,12 Non-Metallic Sloped Top Enclosure, inTOUCH Installation Free LED Phase Indication, cULus, NSF, CE, UL 508 / UL 60947-4-1A

Technical Information

Current
30 Amp
Horsepower
15 hp
Hub Size
3/4 in
Wire Size
14 AWG

Manufacturer Information

Brand
Hubbell Wiring Device-Kellems

General Product Info

12-Digit UPC
783585763026
Color
Gray
Product UPC
78358576302
Shape
Rounded Top
Weight
2.7 lb

Dimensions

Height
4.12 Inch
Width
5.5 in

Certifications and Compliance

Country of Origin
Poland
Features
  • Constructed from corrosion and impact resistant UV stabilized non-metallic material
  • Rounded sloped top enclosure supports best practices in hygienic design by shedding dirt and debris
  • IP69k and Type 4X,12K water ingress protection and Certified by NSF for hygiene in food processing applications
  • Highly visible red handle can be locked in the OFF position as a method of compliance with OSHA Lockout/Tagout requirements
  • Product rating are permanently laser-marked and will not wash off
  • Six highly visible integral phase identification LEDs for use on 3 Phase Y or Delta systems provide secondary means of visual confirmation of make/break on all phases
  • LED Power Indicators
