P&S TSDL153PW TOG SLIDE LED DIMMER

Manufacturer: Legrand Pass & Seymour | Catalog # TSDL153PW | Codale Part # 4645294
*Call For Price*
Log in or register to view your price, purchase history, and more!
Experiencing long lead times. Please call for availability.
Primary Spec Sheet Installation / Instruction Manual
Upgrade your space with the Trademaster Toggle Slide LED Advanced Dimmer. Designed specifically for flicker-free control of today's dimmable LED light bulbs and fixtures, this dimmer features advanced circuitry to offer a superior lighting control experience that works right out of the box. The dimmer switch boasts a variety of user adjustments to adapt to a wide range of dimmable LED lights, eliminating unpleasant flickering, pop-ons and more. Wall Plates sold separately. *Not intended for use with 0-10V, Magnetic Low Voltage and Electronic Low Voltage Drivers.

Technical Information

Material
Steel

Manufacturer Information

Brand
Legrand
Sub Brand
Pass & Seymour

General Product Info

12-Digit UPC
785007450569
Color
White
Finish
Gloss
Product UPC
78500745056
Weight
0.21 lb

Dimensions

Depth
1.57 Inch
Height
4.2 Inch
Length
1.85 Inch
Width
1.74 in

Certifications and Compliance

Country of Origin
China
Certifications
  • RoHS Compliant
  • NEMA Conformity
  • UL Listed
  • CSA Listed
  • cULus Listed
Features
  • Specifically designed for use with dimmable LED bulbs and fixtures up to 150W at 120VAC. Optimized to work out of the box, and provide flicker-free control of LEDs. *Not intended for use with 0-10V, Magnetic Low Voltage, or Electronic Low Voltage Drivers
  • Matches appearance of standard Pass & Seymour toggle switch. Interchangeable face covers available in seven different colors.
  • Advanced dimming technology maximizes LED compatibility to provide a full range of control while helping to eliminate most common LED dimming issues.

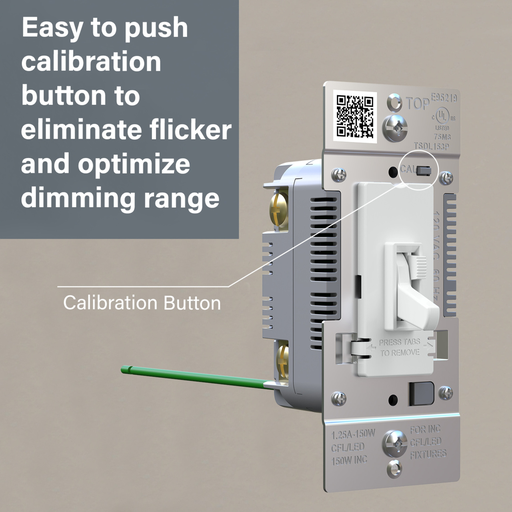

  • Simple high-and-low end dimming limit adjustability with easy-to-push calibration button to meet all lighting preferences and eliminate LED flickering.
  • Replaces any basic single-pole or 3-way switch or dimmer in less than 15 minutes. No neutral wire required, works in both new construction and retrofit applications.
  • Back-wire screw and pressure plate terminations for easy and reliable wiring with ground wire lead and wire nut provided.
  • QR code provided on front face of device to provide easy access to installation guides and videos.
  • Constant memory feature returns light levels and user adjustments to return to previous settings following a power failure or outage.
  • Optional LED Burst Mode setting can be activated as needed to help eliminate or reduce LED turn on delays and pop-ons.
