Panduit DPF14-250FIB-C Disconnect, Blackue, Premium Nylon, 14-16 AWG, 0.25" Tab

Manufacturer: Panduit | Catalog # DPF14-250FIB-C | Codale Part # 4656499
$281.41/c (100 ea)
ea
Log in or register to view your price, purchase history, and more!
Experiencing long lead times. Please call for availability.
Buy American Compliant Buy American Compliant Primary Spec Sheet Product Catalog Page

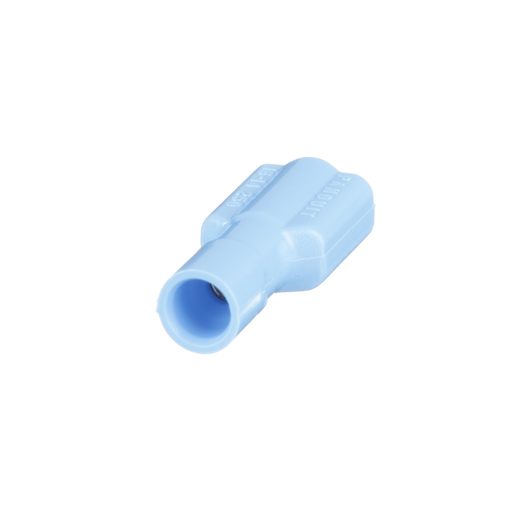

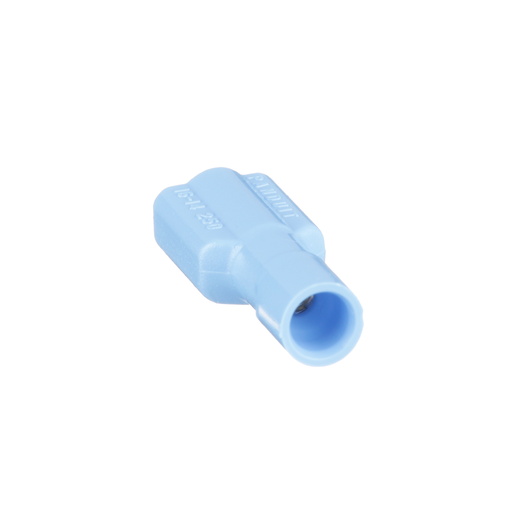

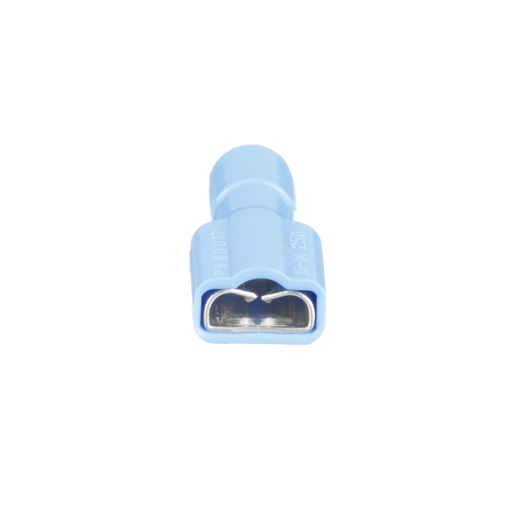

The vibration resistant DiscoGrip™ female disconnect is made of brass and is tin-plated. It is fully insulated in blue premium nylon housing. It has a tab size of 0.250 x 0.032" (6.3 x 0.8 mm) and supports a wire range of 16-14 AWG (1.5-2.5 mm.). It is 0.84" (21.3 mm) long and 0.35" (8.9 mm) wide. The disconnect has a funnel entry barrel configuration and a butted seam barrel. It comes in bottles of 100.

Technical Information

Barrel Type
Butted Seam
Conductor Size
14 AWG
Material
Brass
Max Operating Temperature
105 degrees C
Standard
CSA,E2186,UL
Tc Connection
Funnel
Temperature Rating
221 degrees F
Type
Disconnect
Voltage
600 Volt
Wire Size
16-14 AWG

Packaging

Pkg Qty
100

Manufacturer Information

Brand
Panduit Corp.
Sub Brand
Pan-Term®

General Product Info

12-Digit UPC
074983203888
Color
Blue
Finish
Rust-Proof Plating, Vinyl Coated
Product UPC
07498320388
UNSPSC
39121409

Dimensions

Height
0.22 Inch
Overall Length
0.84 in
Width
0.35 in

Certifications and Compliance

Buy American Compliant
Y
Country of Origin
Mexico
Standards and Certifications
  • Standards Met: UL 310 Listed, UL Listed 20H3 E78522; CSA Certified LR31212, C22.2 No.153
