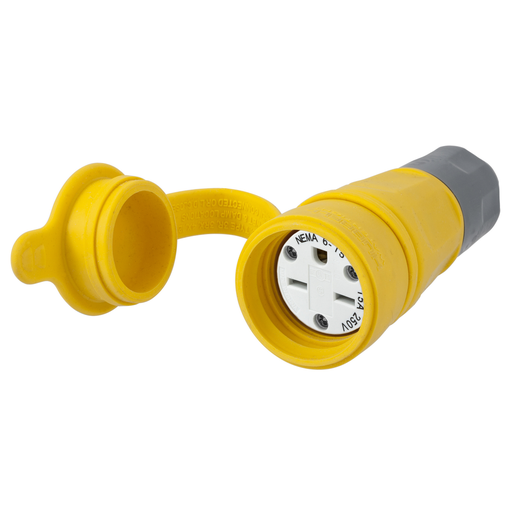

HWDK HBL15W49 CONN, W/TIGHT, 6-15R,

Manufacturer: Hubbell Wiring Device-Kellems | Catalog # HBL15W49 | Codale Part # 4666569
$68.46/ea
ea
Log in or register to view your price, purchase history, and more!
Experiencing long lead times. Please call for availability.
Primary Spec Sheet Product Catalog Page Installation / Instruction Manual
Straight Blade Devices, Female ConnectorBody, Elasto-Grip Water Tight, Industrial/Commercial Grade, Straight, 2-Pole 3-Wire Grounding, 15A 250V, 6-15R, Yellow, Single Pack

Technical Information

Amperage
15 Amp
Applications
For Industrial, Commercial
Body Material
Thermoplastic Elastomer
Conductor Size
14-12 AWG
Contact Material
Nickel-Plated Brass
Current
15 Amp
Grounding
Grounding
Material
Composite/Elastomeric
Mounting Type
Cord
NEMA
6-15R
Number of Conductors
3-Wire Grounding
Number of Poles
2 Pole
Number of Wires
2 Wire
Operating Temperature
-40 degrees C
Screw Material
Nickel Plated Brass
Size
Standard Sized Product
Tc Connection
Terminal Screws
Temperature Rating
-40 to 75 degrees F
Type
Elasto-Grip
Voltage
250 Volt
Wire Count
3

Manufacturer Information

Brand
Hubbell Wiring Device-Kellems
Sub Brand
Straight Blade Devices

General Product Info

12-Digit UPC
783585131306
Color
Yellow
Product UPC
78358513130

Dimensions

Height
1-1/2 Inch
Length
11 Inch
Width
3.180 in

Certifications and Compliance

Country of Origin
China
Features
  • Smooth body design minimizes collection points simplifying thewash down process
  • Strain relief nut always seals on the body, minimizing debris collection
  • Stainless steel hardware and corrosion-resistant connection points
