NVENT HOF DNG2208R5 Window door 22

Manufacturer: nVent Hoffman | Catalog # DNG2208R5 | Codale Part # 4673505
$2,138.83/ea
ea
Log in or register to view your price, purchase history, and more!
Experiencing long lead times. Please call for availability.
Primary Spec Sheet

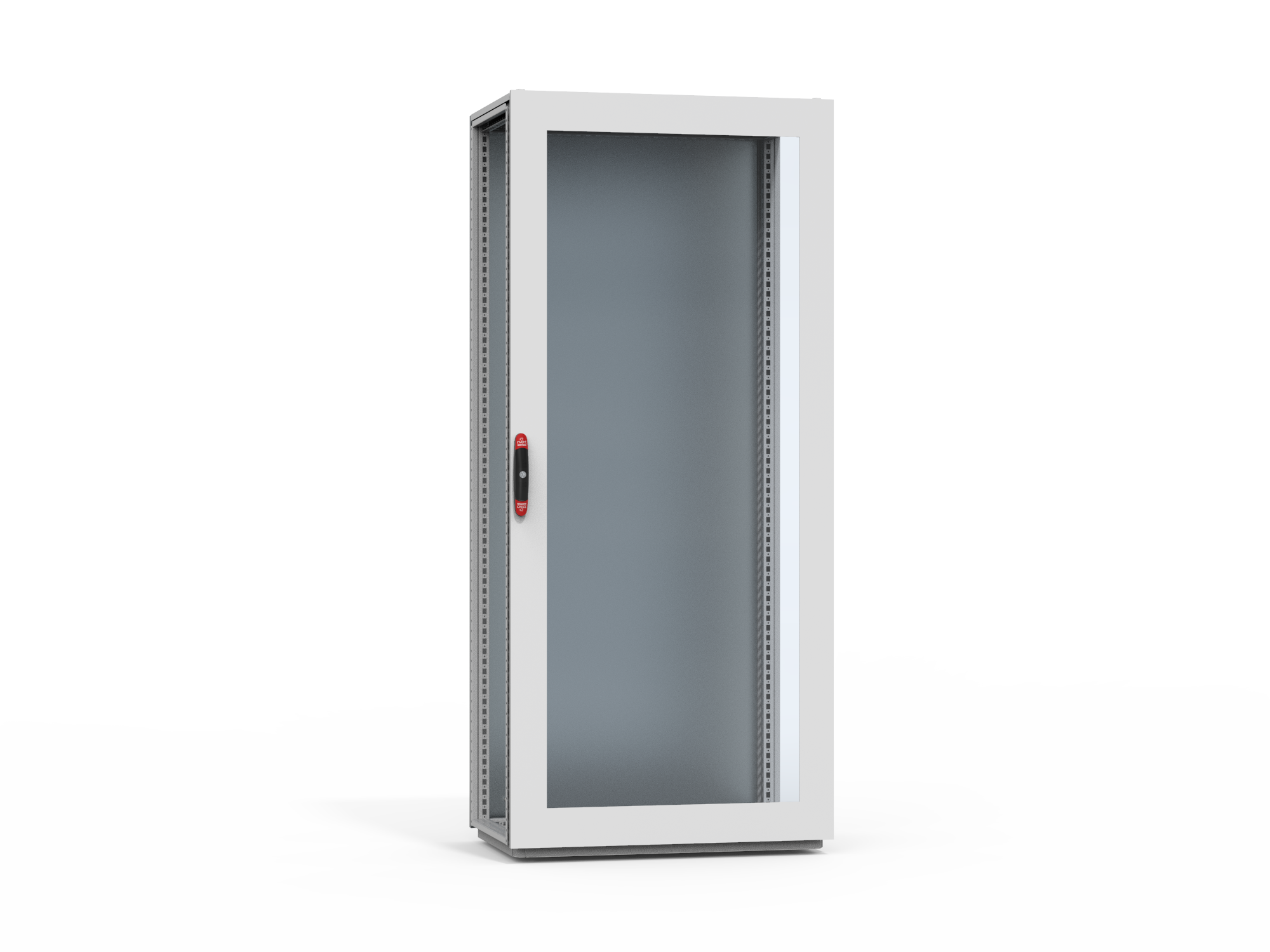

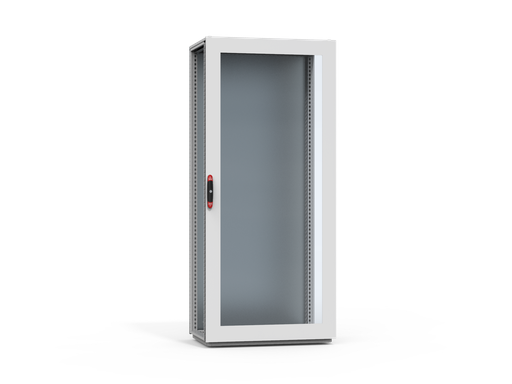

Glazed door with fitted clear safety glass to view the inside of the enclosure. This Glazed Doors, DNG, DNG2208R5 item measures 2182x793x17mm with a material of Mild Steel, color Light Gray.

Technical Information

Applications
Factory Automation and Process Control; Controls and Drives
Color Coding
RAL 7035
Material
Steel
Size
85.91 x 31.22 x 0.66 inch
Type
IEC Enclosure Accessories

Packaging

Pkg Qty
1

Manufacturer Information

Brand
nVent Hoffman

General Product Info

12-Digit UPC
783510467883
Color
Light Gray
Construction
14 gauge
Finish
Powder Coated
Product UPC
78351046788
Weight
65.32 lb

Dimensions

Depth
0.66 Inch
Height
8 Inch
Length
86.99 Inch
Thickness
2 mm
Width
31.22 in
Features
  • Description: Glazed door with fitted clear safety glass to view the inside of the enclosure. Equipped with double-bit 3 mm lock system and door frame. Allows all options of the locking program. Compatible with combinable and compact enclosure ranges.
  • Material: Frame: 2 mm steel plate. Viewing area: 4 mm clear safety glass.
  • Finish: RAL 7035 structured powder coating.
  • Protection: Complies with IP 55, TYPE 12, IK 07.
  • Pack quantity: 1 piece.
  • Mounting requirements: Use hinge kit DNMK01 if no door was fitted previously.
