Burndy YAES18N3 Nylon Ring Terminal For 22 - 18 AWG

Manufacturer: Hubbell-Burndy | Catalog # YAES18N3 | Codale Part # 4679152
$84.40/c (100 ea)
ea
Log in or register to view your price, purchase history, and more!
Experiencing long lead times. Please call for availability.
Primary Spec Sheet
Nylon Insulated CU Ring Tongue Terminal, Wire Range: 22-18 AWG, Stud Size: #4 - #6, Package: Bulk, Strip Length: 7/32 IN.

Technical Information

Applications
For use on copper compression connections
Cable Size
22 - 18 AWG
Color Coding
Red
Conductor Size
18 AWG
Conductor Type
CU C Str-Size
Connection Type
Ring Terminal
Insulation Type
Nylon
Material
Copper
Max Voltage
600 V
Plated?
Yes
Plating Type
Tin - Electro Plated
Stud Size
0.164-0.19 in
Type
YAES
Voltage
600 Volt

Manufacturer Information

Brand
Hubbell Incorporated
Sub Brand
Burndy

General Product Info

12-Digit UPC
781810804889
Product UPC
78181080488

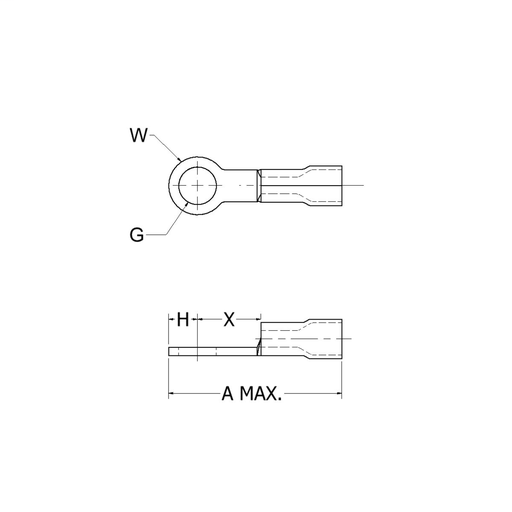

Dimensions

Height
0.24 Inch
Length
0.91 Inch
Overall Length
0.91 in
Width
0.31 in

Certifications and Compliance

Country of Origin
USA
CSA
No
Features
  • Integral one-piece copper barrel / insulation grip and wire strain relief design for improved physical strength characteristics over a multi-piece design
  • Manufactured of pure electrolytic copper for maximum conductivity, low resistance and ductility for excellent crimp forming properties
  • Brazed seam provides a stronger barrel design, minimizes any possible splitting and eliminates folding
  • Deep inner barrel serrations and smooth funnel entry for excellent conductivity and pullout strength values along with easy wire insertion
  • Insulation is locked in place, will not twist off, maintaining proper dielectric values
  • Electro-tin plated for durable, long lasting resistance to corrosion
  • Color-coded and clearly market for quick, easy wire size identification
  • Ring tongue provides a secure termination under the screw head that cannot be removed without complete removal of the screw, allowing two or more terminals to be stacked on a common stud
