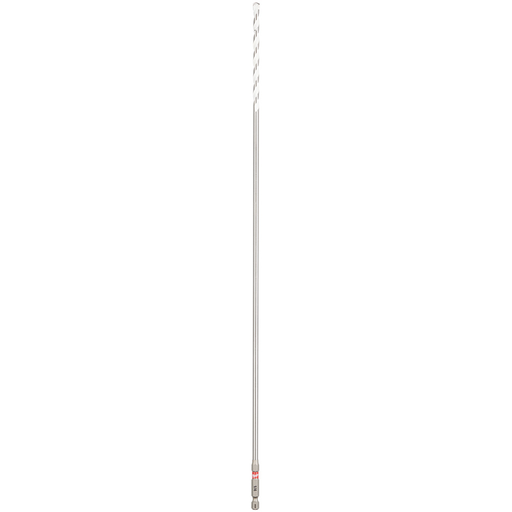

Product image for MILW 48-20-8860 1/4" Multi-Material
Image thumbnail 0
Image thumbnail 1
Image thumbnail 2
Image thumbnail 3
Image thumbnail 4
Image thumbnail 5

Email

MILW 48-20-8860 1/4" Multi-Material

Manufacturer: Milwaukee Tool | Catalog # 48-20-8860 | Codale Part # 4683732

$18.97/ea
ea
Log in or register to view your price, purchase history, and more!
Experiencing long lead times. Please call for availability.
The MILWAUKEE® SHOCKWAVE Impact Duty™ Carbide Multi-Material Bellhanger Bits are the most versatile bellhanger bits, designed to tackle materials such as brick, block, concrete, steel, aluminum, ceramic tile, backerboard, wood, PVC, stucco, and drywall for small wire system installation. Designed with a hole in the tip for cable & wire pulling applications when installing computer, security, phone, and cable systems. These installer bits, standing at 18. in length, provide extra reach for complete through-hole applications. The bits feature an aggressive multi-grind carbide tip, which delivers up to 10x longer life in stacked materials and up to 85% faster drilling speeds in metal. Equipped with a 1/4" hex shank, these general-purpose bits are compatible with impacts, drill/drivers, and hammer drills. MILWAUKEE® SHOCKWAVE Impact Duty™ Multi-Material Bellhanger Bits provide the ideal all-in-one solution for wire-pulling applications.

Technical Information

Applications
For use with brick, cinder block, concrete, steel, aluminum, ceramic tile, backer board, wood, PVC, and drywall for wire pulling
Bit Diameter
1/4 in
Bit Type
Installer
Drilling Depth
16 in
Number of Flutes
2

Manufacturer Information

Brand
Milwaukee Tool

General Product Info

12-Digit UPC
045242798476
Product UPC
04524279847

Dimensions

Flute Length
16.0 in
Overall Length
18.0 in
Shank Diameter
0.25 in
Features
  • The Most Versatile Bellhanger Bit.
  • Designed with a pull-through hole in the tip for cable & wire pulling applications
  • For use with brick, block, concrete, steel, aluminum, ceramic tile, backer-board, wood, PVC, stucco, and drywall
  • Up to 10x longer life in stacked materials
  • Up to 85% faster in metal vs. standard masonry drill bits
  • For installing small wire systems including computer, security, phone, cable, and tv systems

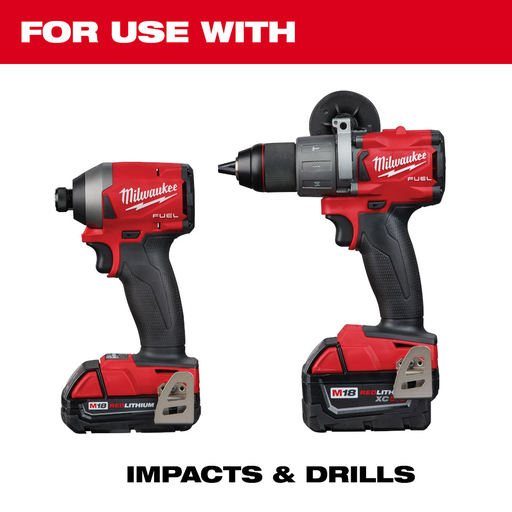

  • SHOCKWAVE™ Impact Duty engineered for hammer drills and impacts
  • Durable carbide tip for a wide range of tough applications
  • Less bit changes for increased productivity
  • Use in hammer mode for faster drilling in masonry and concrete
  • 18 length for complete through-hole applications
  • hex shank for added tool versatility
  • Available in diameters , 5/16, 3/8,
