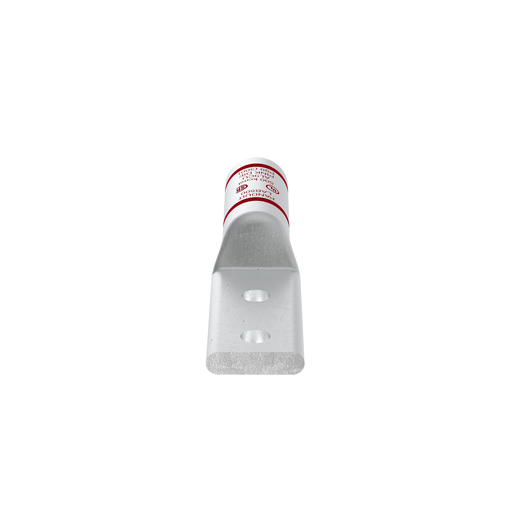

Product image for Panduit LAB1/0-12-30 Pan-Lug™ Aluminum 1 Hole Compression Lug
Image thumbnail 0
Image thumbnail 1
Image thumbnail 2
Image thumbnail 3
Image thumbnail 4
Email

Panduit LAB1/0-12-30 Pan-Lug™ Aluminum 1 Hole Compression Lug

Manufacturer: PANDUIT | Catalog # LAB1/0-12-30 | Codale Part # 4690769
$3,853.65/c (100 ea)
ea
Log in or register to view your price, purchase history, and more!
Experiencing long lead times. Please call for availability.
Prop 65 Warning Prop 65 Warning Buy American Compliant Buy American Compliant Installation / Instruction Manual
The LAB1/0-12-30 Aluminum Compression Connector Lug, two hole, is manufactured from high conductivity thick wall aluminum with an enclosed barrel for harsh environments. The color-coded barrels are marked with Panduit and specified competitor die index numbers for proper crimp die selection. Factory pre-filled with joint compound and tin-plated to inhibit corrosion. UL listed and CSA certified up to 35kV and temperature rated to 90.C.

Technical Information

Barrel Length
1.5 in
Material
Aluminum
Tongue Thickness
0.23 in
Tongue Type
Standard
Tongue Width
0.88 in
Type
Compression Lug

Manufacturer Information

Brand
Panduit Corp.
Sub Brand
Pan-Lug™

General Product Info

12-Digit UPC
613056895775
Product UPC
61305689577

Dimensions

Overall Length
5.39 in
Width
NA In.

Certifications and Compliance

Buy American Compliant
Y
Country of Origin
India

Certifications & Compliance

Prop 65 Warning
N
Prop 65
  • N
Standards and Certifications
  • Standards Met: UL listed and CSA certified
