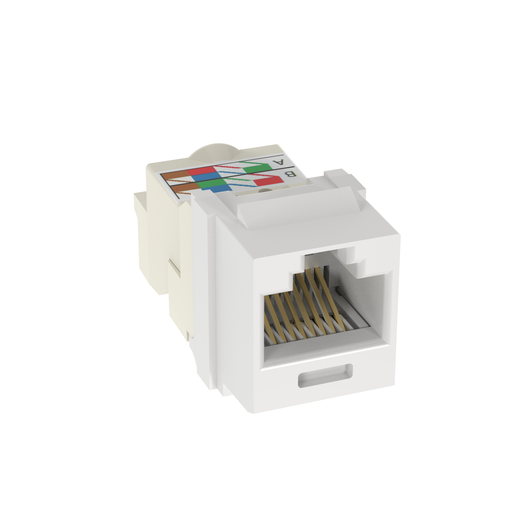

Product image for Panduit NK6TMWH UTP RJ45 Cat 6 Keystone Jack Module, White
Image thumbnail 0
Image thumbnail 1
Image thumbnail 2
Image thumbnail 3
Image thumbnail 4
Image thumbnail 5
Email

Panduit NK6TMWH UTP RJ45 Cat 6 Keystone Jack Module, White

Manufacturer: Panduit | Catalog # NK6TMWH | Codale Part # 4690824
$20.06/ea
ea
Log in or register to view your price, purchase history, and more!
Experiencing long lead times. Please call for availability.
Buy American Compliant Buy American Compliant Primary Spec Sheet Installation / Instruction Manual
The NetKey® Cat 6 UTP TP Keystone Jack Module is designed to terminate 4-pair, 22.26 AWG twisted pair cable. Each module is 100% factory tested to exceed industry standard performance requirements. Contacts are plated with 50 microinches of gold for superior performance. Jacks are individually serialized for traceability and are compatible with keystone interfaces such as NetKey® Faceplates, Modular Patch Panels, and Surface Mount Boxes. The jack module is white.

Technical Information

Applications
For Ethernet 10BASE-T, 100BASE-T (Fast Ethernet), and 1000BASE-T (Gigabit Ethernet), 155 Mbps ATM, 622 Mbps ATM, 1.2 Gbps ATM, Token Ring 4/16, Voice Over Internet Protocol (VoIP)
Cable Size
26-22 AWG
Cable Type
Category 6
Material
ABS Plastic
Max Operating Temperature
149 degrees F
Min Operating Temperature
-10 degrees C
Number of Positions
8
Performance Level
Category 6
Temperature Rating
-10 to 65 degrees C
Type
Unshielded, 8-Wire, Keystone, Universal, Shuttered

Packaging

Pkg Qty
1

Manufacturer Information

Brand
Panduit Corp.
Sub Brand
NetKey

General Product Info

12-Digit UPC
074983438112
Color
White
Product UPC
07498343811
Used With
T568A/T568B Cable

Dimensions

Depth
1.43 Inch
Height
0.76 Inch
Overall Length
36.3 mm
Width
14.7 mm

Certifications and Compliance

Buy American Compliant
Y
Country of Origin
USA
Standards and Certifications
  • Standards Met: Meets all ANSI/TIA-568.C2 Category 6 and ISO 11801 2nd Edition Class E Channel Standard Requirements at Swept Frequencies up to 250 MHz, Meets ANSI/TIA-1096-A, Meets IEC 60603-7, Meets Requirements of IEEE 802.3af and IEEE 802.3at for PoE Applications, UL 1863, and RoHS Compliant
