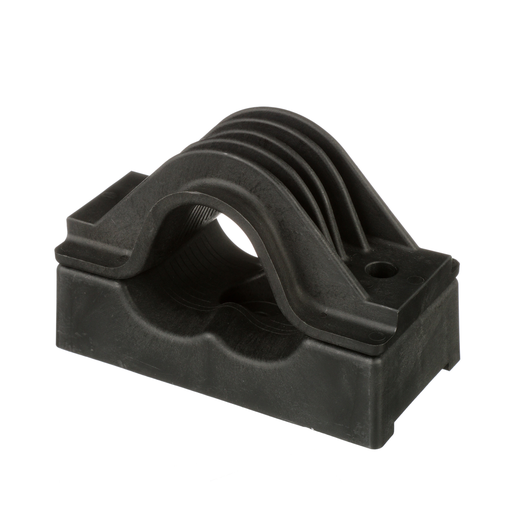

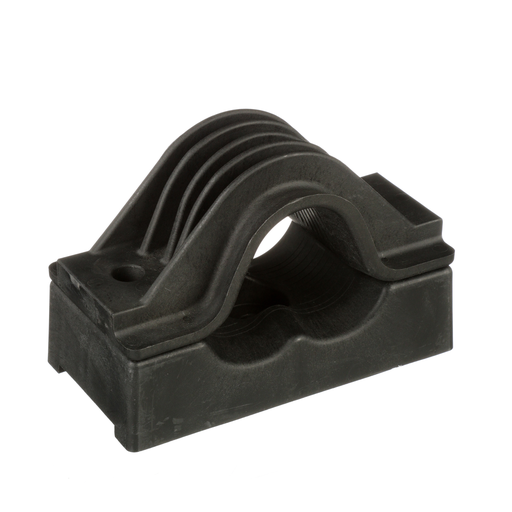

Panduit CCPLTR5060-X Cable Cleat, TR Clamp Type, PL, Trefoil, 1.97-2.36in OD, PK10

Manufacturer: PANDUIT | Catalog # CCPLTR5060-X | Codale Part # 4692182
$14,332.46/c (100 ea)
ea
Log in or register to view your price, purchase history, and more!
Experiencing long lead times. Please call for availability.
Buy American Compliant Buy American Compliant Primary Spec Sheet Product Catalog Page Installation / Instruction Manual
The CCPLTR5060-X Polymer Trefoil Cable Cleat is ideal for medium to high short circuit faults in less harsh environments. The cable cleat is certified to IEC 61914:2015, tested up to 136kA peak fault current and retains cables in the event of a short circuit fault. Compatible with cable diameter of 50-60mm and installs direct to the cable tray rung via fixing holes and user-supplied M10 bolt. Features glass filled nylon material and rounded edges for cable insulation protection.

Technical Information

Material
Nylon
Max Operating Temperature
140 degrees F
Min Operating Temperature
-40 degrees C
Type
Polymer Cable Cleat

Manufacturer Information

Brand
Panduit Corp.
Sub Brand
NA

General Product Info

12-Digit UPC
613056690851
Color
Black
Environment
Indoor,Outdoor
Product UPC
61305669085

Certifications and Compliance

Buy American Compliant
Y
Country of Origin
USA
Standards and Certifications
  • Standards Met: IEC 61914:2015
