Burndy YAEV14BOX Ring Tongue Copper Tubing Terminal, 94 in L, 31 in W, Tin Plated, 600 Volts Max, 105 Deg C Max

Manufacturer: Hubbell-Burndy | Catalog # YAEV14BOX | Codale Part # 4694779
$274.92/c (100 ea)
ea
Log in or register to view your price, purchase history, and more!
Experiencing long lead times. Please call for availability.
Primary Spec Sheet
Ring Tongue Copper Tubing Terminal; .94 in L; .31 in W; Tin Plated; 600 Volts Max.; 105 C Max.

Technical Information

Applications
For High Vibration Applications Encountered In Aircraft And Aboard Ships As Well As Motor Lead Applications In Hospitals, Industrials And Generating Plants
Cable Size
18 - 14 AWG
Color Coding
Blue
Conductor Size
14 AWG
Connection Type
Ring Terminal
Insulation Type
Nylon
Material
Copper
Max Voltage
600 V
Plated?
Yes
Plating Type
Tin
Stud Size
#10,#8
Temperature Rating
105 degrees C
Tongue Type
Ring
Type
YAEV, Heavy Duty
Voltage
600 Volt

Manufacturer Information

Brand
Hubbell Incorporated
Sub Brand
Burndy

General Product Info

12-Digit UPC
781810023327
Color
Blue
Product UPC
78181002332

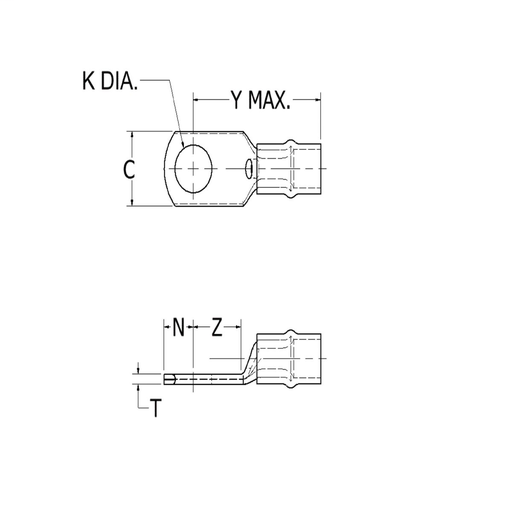

Dimensions

Height
1/4 Inch
Hole Size
0.20 in
Length
0.94 Inch
Overall Length
24 mm
Pad Width
0.31 in
Width
0.31 in

Certifications and Compliance

Country of Origin
USA
CSA
No
Features
  • Double thick tongue for maximum reliability and electrical capacity plus an extra strong terminal tongue
  • Manufactured from one-piece pure electrolytic copper high conductivity, low resistance with no seams to split plus ductility for excellent crimp forming properties
  • Electro-tin plated to provide long-lasting corrosion resistance
  • Nylon insulation is locked in place Insulation will not move or twist off
  • 600 volt nylon insulation providing high dielectric strength and stability in demanding oily evironmental conditions
  • Color Coded providing quick, easy wire size connector selection
