Burndy YAEV8CL1BOX Copper Tubing Terminal, 1/4, 1466 in L, 455 in W, Tin Plated, 600 Volts Max

Manufacturer: Hubbell-Burndy | Catalog # YAEV8CL1BOX | Codale Part # 4694783
$8.05/ea
ea
Log in or register to view your price, purchase history, and more!
Experiencing long lead times. Please call for availability.
Primary Spec Sheet
Copper Tubing Terminal, 1/4, 1.466 in L, .455 in W, Tin Plated, 600 Volts Max.

Technical Information

Applications
For Very Demanding High Vibration Applications Encountered In Aircraft And Aboard Ships As Well As Motor Lead Applications In Hospitals, Industrials And Generating Plants
Cable Size
8 AWG Stranded
Color Coding
Red
Conductor Size
8 AWG
Connection Type
Ring Terminal
Insulation Type
Nylon
Material
Copper
Max Voltage
600 V
Plated?
Yes
Plating Type
Tin
Stud Size
0.25 in
Temperature Rating
105 degrees C
Type
YAEV-L, Heavy Duty
Voltage
600 Volt

Manufacturer Information

Brand
Hubbell Incorporated
Sub Brand
Burndy

General Product Info

12-Digit UPC
781810023303
Product UPC
78181002330

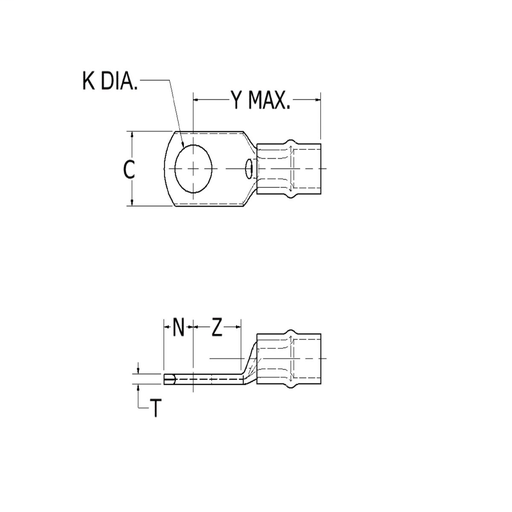

Dimensions

Height
0.36 Inch
Length
1.47 Inch
Overall Length
37 mm
Width
0.46 in

Certifications and Compliance

Country of Origin
USA
CSA
No
Features
  • Double thick tongue for maximum reliability and electrical capacity plus an extra strong terminal tongue
  • Manufactured from one-piece pure electrolytic copper high conductivity, low resistance with no seams to split plus ductility for excellent crimp forming properties
  • Electro-tin plated to provide long-lasting corrosion resistance
  • Nylon insulation is locked in place Insulation will not move or twist off
  • 600 volt nylon insulation providing high dielectric strength and stability in demanding oily evironmental conditions
  • Color Coded providing quick, easy wire size connector selection
