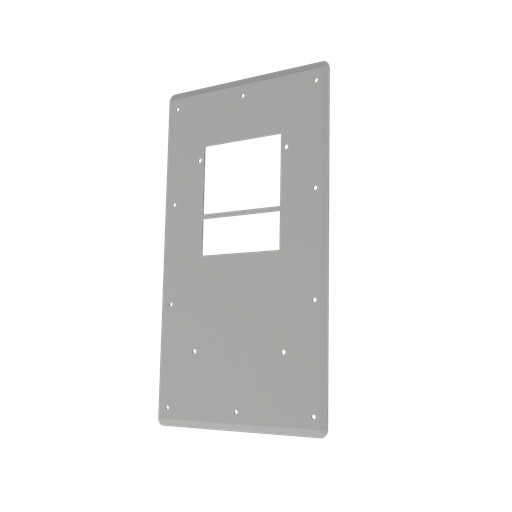

Product image for Hoffman EGVM2 COMLINE Vertical Mount Cabinet, 23.23x 12.68x0.35, Lt Gray, Aluminum
Image thumbnail 0
Image thumbnail 1
Email

Hoffman EGVM2 COMLINE Vertical Mount Cabinet, 23.23x 12.68x0.35, Lt Gray, Aluminum

Manufacturer: nVent Hoffman | Catalog # EGVM2 | Codale Part # 4695292
$386.00/ea
ea
Log in or register to view your price, purchase history, and more!
Experiencing long lead times. Please call for availability.
Primary Spec Sheet
ComLine Vertical-Mount Cabinet is ideal for telecommunications industry applications. The unique vertical orientation of the 19-inch rack equipment makes this cabinet especially suitable for pole-mount applications. The narrow cabinet width also makes it very wind resistant.

Technical Information

Applications
Datacom and Telecom Equipment
Color Coding
RAL 7035
Material
Aluminum
Standard
12,3R,4,4X,CSA: Type 3,Cabinet Is R,Designed To Meet Telcordia NEBS™ GR-487,EC60529,EIA 310-D With 19-in. Spacing For Rack Equipment,File No. E61997,GR-63 And IEC 48D,IP66,NEMA/EEMAC Type 3,Type 3,UL 508A Listed
Type
Data Networking Freestanding Cabinets

Manufacturer Information

Brand
nVent Hoffman
Sub Brand
ComLine

General Product Info

12-Digit UPC
783510211554
Color
Lt Gray
Finish
Gray
Product UPC
78351021155
Weight
3 lb

Dimensions

Depth
0.35 Inch
Height
1-1/2 Inch
Length
24 Inch
Thickness
0.1 in
Width
12.68 in
Features
  • Vertically oriented 19-inch equipment mounting creates a compact, wind-resistant cabinet
  • Integral solar shield reduces solar heat load
  • Right-side, solid gland plate can be removed and modified as needed
  • 6 RU Rack has square hole spacing per EIA universal standards; order cage nuts separately
  • Quarter-turn, multi-point, vault-style latching system increases protection and security
  • 160-degree door opening with quick-release, retained hinge pins
  • Body and door ground studs for bonding and grounding
  • Foam-in-place seamless gasket for superior protection against dust and liquid ingress
  • Back is prepared with mounting provisions for standard panels
  • Mounts to poles or walls
