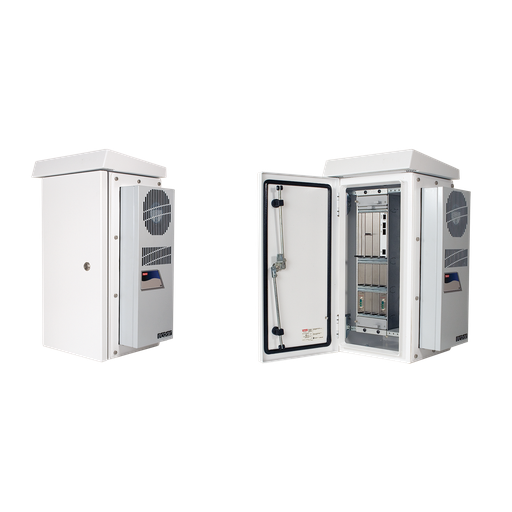

Product image for Hoffman ECL603537VP COMLINE Vertical Mount Cabinet, 600x 350x 375mm, Lt Gray, Aluminum
Image thumbnail 0
Image thumbnail 1
Email

Hoffman ECL603537VP COMLINE Vertical Mount Cabinet, 600x 350x 375mm, Lt Gray, Aluminum

Manufacturer: nVent Hoffman | Catalog # ECL603537VP | Codale Part # 4696407
$2,323.20/ea
ea
Log in or register to view your price, purchase history, and more!
Experiencing long lead times. Please call for availability.
Primary Spec Sheet
ComLine Vertical-Mount Cabinet is ideal for telecommunications industry applications. The unique vertical orientation of the 19-inch rack equipment makes this cabinet especially suitable for pole-mount applications. The narrow cabinet width also makes it very wind resistant.

Technical Information

Applications
Datacom and Telecom Equipment
Color Coding
RAL 7035
Material
Aluminum
Standard
12,3R,4,4X,CSA: Type 3,Cabinet Is R,Designed To Meet Telcordia NEBS™ GR-487,EC60529,EIA 310-D With 19-in. Spacing For Rack Equipment,File No. E61997,GR-63 And IEC 48D,IP66,NEMA/EEMAC Type 3,Type 3,UL 508A Listed
Type
Data Networking Freestanding Cabinets

Manufacturer Information

Brand
nVent Hoffman
Sub Brand
ComLine

General Product Info

12-Digit UPC
783510211530
Color
Lt Gray
Finish
Gray
Product UPC
78351021153
Weight
29.85 lb

Dimensions

Depth
14.76 Inch
Height
23.62 Inch
Length
24 Inch
Thickness
0.1 in
Width
12.00 in
Features
  • Vertically oriented 19-inch equipment mounting creates a compact, wind-resistant cabinet
  • Integral solar shield reduces solar heat load
  • Right-side, solid gland plate can be removed and modified as needed
  • 6 RU Rack has square hole spacing per EIA universal standards; order cage nuts separately
  • Quarter-turn, multi-point, vault-style latching system increases protection and security
  • 160-degree door opening with quick-release, retained hinge pins
  • Body and door ground studs for bonding and grounding
  • Foam-in-place seamless gasket for superior protection against dust and liquid ingress
  • Back is prepared with mounting provisions for standard panels
  • Mounts to poles or walls
