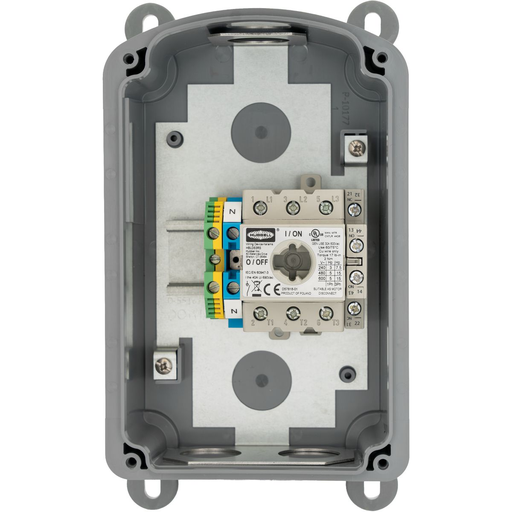

Product image for HWDK HBLDS30TVFD NM TF SLOPED DISC,
Image thumbnail 0
Image thumbnail 1
Image thumbnail 2
Email

HWDK HBLDS30TVFD NM TF SLOPED DISC,

Manufacturer: Hubbell Wiring Device-Kellems | Catalog # HBLDS30TVFD | Codale Part # 4696818
$516.85/ea
ea
Log in or register to view your price, purchase history, and more!
Experiencing long lead times. Please call for availability.
Primary Spec Sheet
Industrial Grade, Motor Disconnect, Unfused, 3 Pole, 30A 600V AC, Screw Terminals, IP69k, NEMA Type 4X, 12, Non-Metallic Sloped Top Enclosure for Top Feed Applications, HBLAC2 Aux Contact, cULus, NSF, CE, UL 508 / UL 60947-4-1A

Technical Information

Current
30 Amp
Horsepower
15 hp
Hub Size
3/4 in
Wire Size
14 AWG

Manufacturer Information

Brand
Hubbell Wiring Device-Kellems

General Product Info

12-Digit UPC
783585763491
Color
Gray
Product UPC
78358576349
Shape
Rounded Top
Weight
2.8 lb

Dimensions

Height
4.12 Inch
Width
5.5 in

Certifications and Compliance

Country of Origin
Poland
Features
  • Constructed from corrosion and impact resistant UV stabilized non-metallic material
  • Rounded sloped top enclosure has a single flat for top feed applications and supports best practices in hygienic design by shedding dirt and debris
  • IP69k and Type 4X,12K water ingress protection and Certified by NSF for hygiene in food processing applications
  • Highly visible red handle can be locked in the OFF position as a method of compliance with OSHA Lockout/Tagout requirements
  • Product rating are permanently laser-marked and will not wash off
  • Factory installed HBLAC2 auxiliary contact is \"Break Before Main Break\", 1 set of N/O contacts for VFD applications
