Panduit F92ERLNLNSNM005 Opti-Core® 2 Fi

Manufacturer: PANDUIT | Catalog # F92ERLNLNSNM005 | Codale Part # 4701973
$150.98/ea
ea
Log in or register to view your price, purchase history, and more!
Experiencing long lead times. Please call for availability.
Buy American Compliant Buy American Compliant Primary Spec Sheet Product Catalog Page

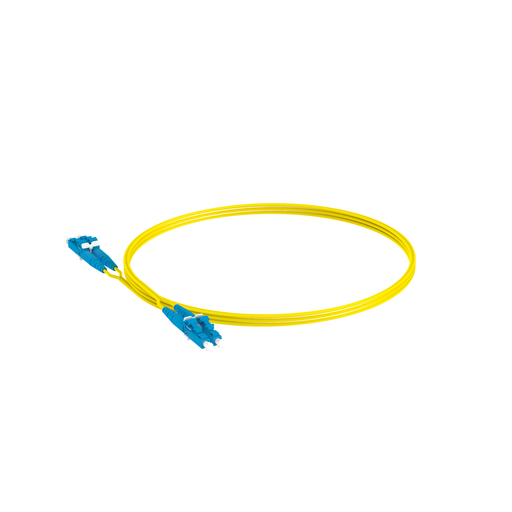

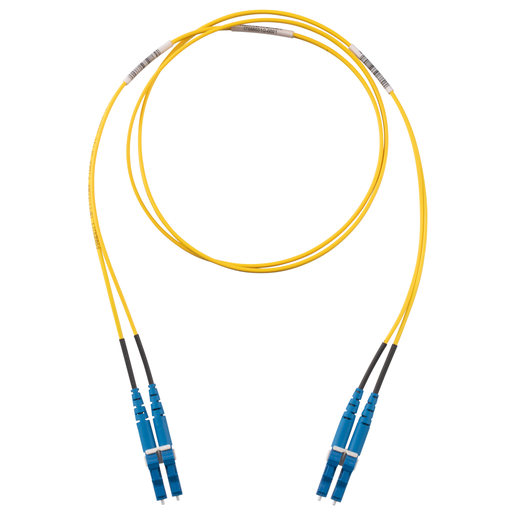

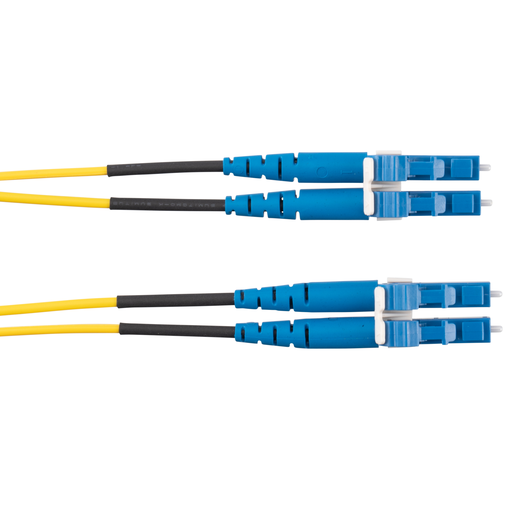

The duplex fiber patch cord is OS1/OS2 with 1.6mm cable jacket. It is Riser (OFNR), features LC Duplex connectors, has standard insertion loss and is 5 meters in length.

Technical Information

Body Type
Duplex
Boot Color
Green
Cable Type
Duplex
Connection Type
LC Duplex
Connector Type
LC Duplex
Fiber Cable Size
9/125 m
Fiber Cable Type
Jacketed
Fiber Count
2
Fiber Type
OS1/OS2 9/125 m
Max Operating Temperature
140 degrees F
Min Operating Temperature
-10 degrees C
Number of Fibers
2
Number of Poles
2 Pole
Number of Screws
2
Plug Type
LC Connector - Keyed H (Aqua)
Type
OS2, 2-Fiber
Wire Size
1.6 mm

Manufacturer Information

Brand
Panduit Corp.
Sub Brand
Opti-Core®

General Product Info

12-Digit UPC
074983921461
Cable Color
Yellow
Color
Yellow
Environment
Indoor
Product Type
Fiber
Product UPC
07498392146

Dimensions

Cable Length
5 m
Length
5 m
Outer Diameter
0.06 in
Overall Length
16.404 ft

Certifications and Compliance

ARRA Compliant
Yes
Buy American Compliant
Y
Country of Origin
China,Costa Rica,Romania
Hazmat Flag
No
Standards and Certifications
  • Standards Met: Meets or exceeds ISO/IEC 11801, TIA/EIA-568-C.3, TIA-604-3 (FOCIS-3), TIA-604-10 (FOCIS-10)
