PAN LCC6-10AH-L Pan-Lug™ LCC6-10AH-

Manufacturer: PANDUIT | Catalog # LCC6-10AH-L | Codale Part # 4707014
$2,887.26/c (100 ea)
ea
Log in or register to view your price, purchase history, and more!
Experiencing long lead times. Please call for availability.
Buy American Compliant Buy American Compliant Primary Spec Sheet Product Catalog Page Installation / Instruction Manual

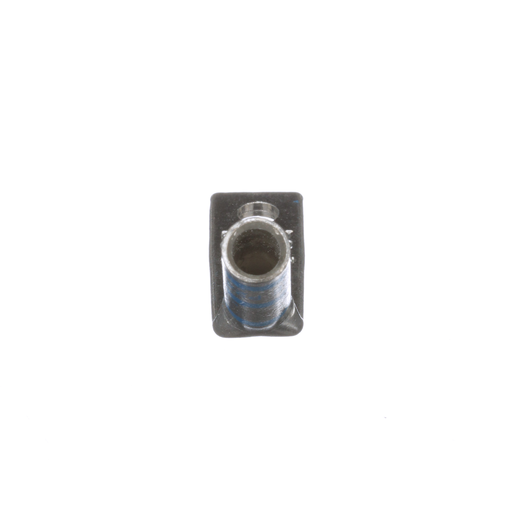

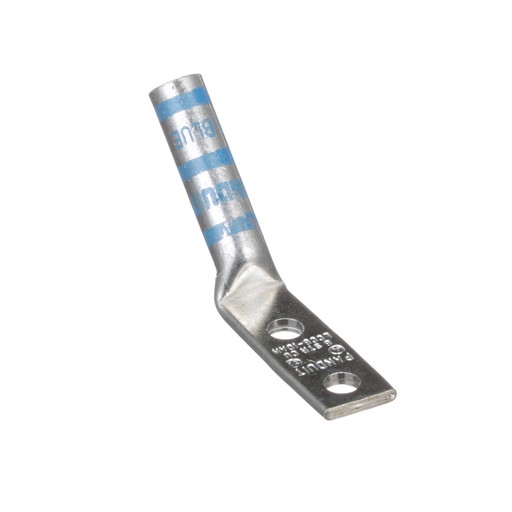

Two-hole, long barrel lug, #6 AWG wire, #10 stud hole, 5/8 hole spacing, 45. angle tongue.

Technical Information

Angle
45
Barrel Length
1.07 in
Barrel Type
Long Barrel Length without Inspection Window
Cable Size
AWG
Material
Copper
Number of Holes
2 Hole
Size
#6 AWG Code
Stud Hole Size
4.8 mm
Stud Size
0.19 In.
Tongue Angle
45 degrees
Tongue Thickness
0.08 in
Tongue Type
Standard
Tongue Width
0.46 in
Type
Compression Lug
Voltage
35,000 Volt

Packaging

Pkg Qty
50

Manufacturer Information

Brand
Panduit Corp.
Sub Brand
Pan-Lug™

General Product Info

12-Digit UPC
074983899883
Color
Blue
Product Type
Power Connectors
Product UPC
07498389988
UNSPSC
39121405

Dimensions

Length
2.14 Inch
Overall Length
2.14 in

Certifications and Compliance

ARRA Compliant
Yes
Buy American Compliant
Y
CE Compliant
No,No
Country of Origin
Mexico
Hazmat Flag
No
Standards and Certifications
  • Standards Met: CSA certified C22.2 No. 65-13, UL Listed to 486A-486B File #E52164, ABS approved, NEBS Level 3
