PAN FR12ACB12N FiberRunner® Adjusta

Manufacturer: PANDUIT | Catalog # FR12ACB12N | Codale Part # 4713181
$165.05/ea
ea
Log in or register to view your price, purchase history, and more!
Experiencing long lead times. Please call for availability.
Prop 65 Warning Prop 65 Warning Buy American Compliant Buy American Compliant Primary Spec Sheet Product Catalog Page Installation / Instruction Manual

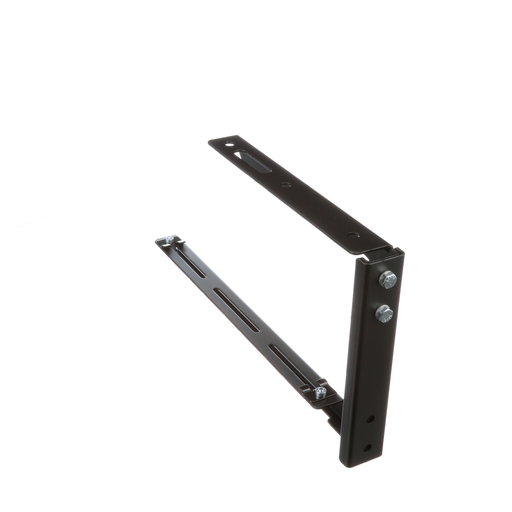

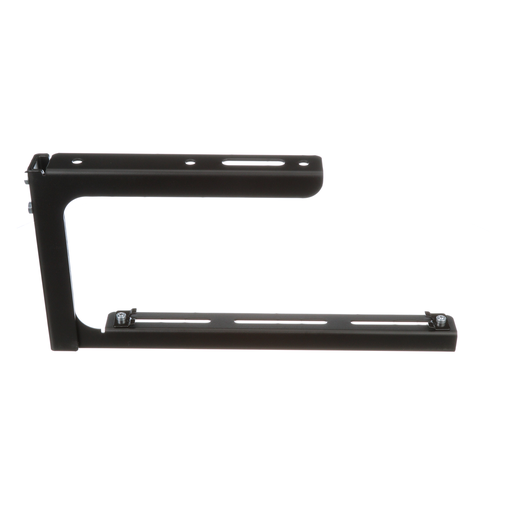

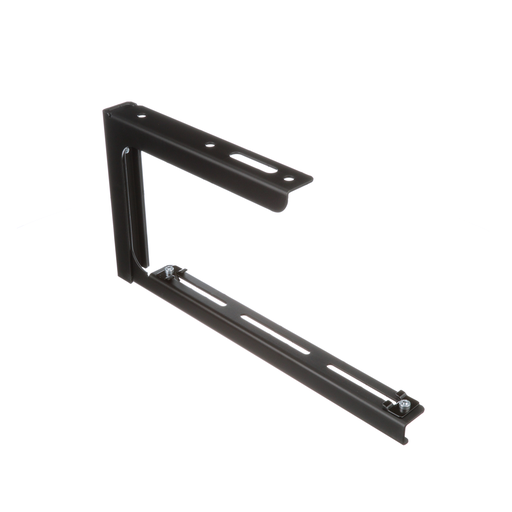

The FiberRunner® QuikLock™ Adjustable C Bracket is used to support the 12x4 system from any 1/2-inch or 12mm threaded rod which is extended down directly from the ceiling, the grid, or a ladder rack system. It features two-position height adjustments to accommodate systems with or without a hinged cover. The adjustable cabinet bracket is secured to the threaded rod with two nuts. The pre-assembled slide clamps enable fast assembly to the channel.

Technical Information

Applications
The FiberRunner® routing system consists of channels, covers, fittings, brackets and hardware. It is designed to segregate, route and protect fiber optic and high performance copper cabling, specifically in data center applications.
Material
Steel
Type
Top Support Adjustable "C"

Manufacturer Information

Brand
Panduit Corp.
Sub Brand
FiberRunner®

General Product Info

12-Digit UPC
613056823617
Color
Black
Product UPC
61305682361

Dimensions

Height
8.72 Inch
Overall Length
17.74 in
Width
1.66 in

Certifications and Compliance

Buy American Compliant
Y
Country of Origin
China,Mexico,Romania,USA

Certifications & Compliance

Prop 65 Warning
N
Prop 65
  • N
Standards and Certifications
  • Standards Met: UL listed to 2024 optical fiber cable routing assemblies compliant with the applicable tests in Telcordia Gr-63-Core Network Equipment Building Systems Level 3, LP-CSISPEC-FR
