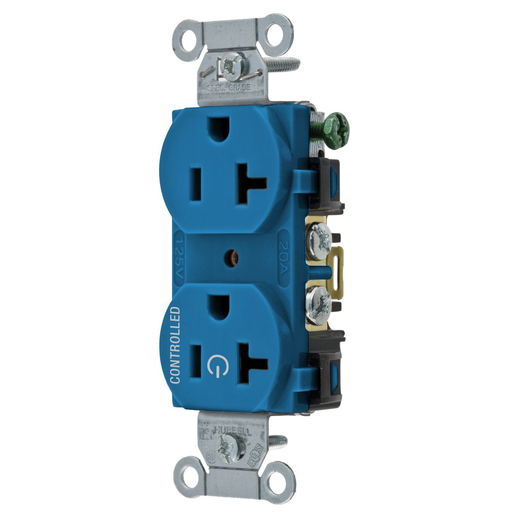

Product image for Hubbell BR20C1BL1/2 CONTROLLED 20A 125V, B/S, DUP, BL
Image thumbnail 0
Image thumbnail 1
Email

Hubbell BR20C1BL1/2 CONTROLLED 20A 125V, B/S, DUP, BL

Manufacturer: Hubbell Wiring Device-Kellems | Catalog # BR20C1BL | Codale Part # 4713473
$8.65/ea
ea
Log in or register to view your price, purchase history, and more!
Experiencing long lead times. Please call for availability.
Primary Spec Sheet Product Catalog Page
Straight Blade Devices, Receptacles, Duplex, 1/2 Load Controlled, 20A 125V, 2-Pole 3-Wire Grounding, 5-20R, Back and Side Wired, Blue

Technical Information

Amperage
20 Amp
Applications
Commercial Specification Grade Duplex
Conductor Size
14-10 AWG
Current
20 Amp
Dielectric Strength
Withstands 2,000V minimum
Horsepower
1 hp
Material
Nylon
NEMA
5-20R
Number of Poles
2-2 Pole
Number of Wires
3,3
Operating Temperature
-40 degrees C
Size
1.32 in x 0.83 in x 3.28 in
Standard
22.2,CSA,Fed. Spec. W-C-596,NEMA® WD-6,No. 42,UL,UL498 File No. E2186
Style
Smooth Face
Tc Connection
Terminal Screws
Type
One Controlled Face, Split Circuit
Voltage
125 Volt
Wattage
2500/2500.0000 Watt;Watt
Wire Size
14-10 AWG

Manufacturer Information

Brand
Hubbell Wiring Device-Kellems
Sub Brand
Straight Blade Devices

General Product Info

12-Digit UPC
783585580401
Color
Blue
Environmental Conditions
Indoor Dry Unless Protected by Additional Means
Product Series
Controlled
Product UPC
78358558040
Weight
0.2 lb

Dimensions

Height
3.28 Inch
Length
1.32 Inch
Width
0.83 in

Certifications and Compliance

Country of Origin
China
Features
  • Permanently marked with universal power symbol and the word \"CONTROLLED\" to visually identify receptacles used in automatic energy management systems
  • Half-Controlled receptacle with one face marked and the circuit tab removed
  • Complies with NEC Section 406.3, ASHRAE 90.1, and California Title 24 requirements
  • Complements Hubbell's Load Logic control's or any available energy management system
