INT-MAT ETCB28254PCR Expanded 4-Pol

Manufacturer: Intermatic | Catalog # ETCB28254PCR | Codale Part # 4715386
$927.83/ea
ea
Log in or register to view your price, purchase history, and more!
3 available

For Delivery

Not in local stock *
Check your local branch
Primary Spec Sheet Installation / Instruction Manual

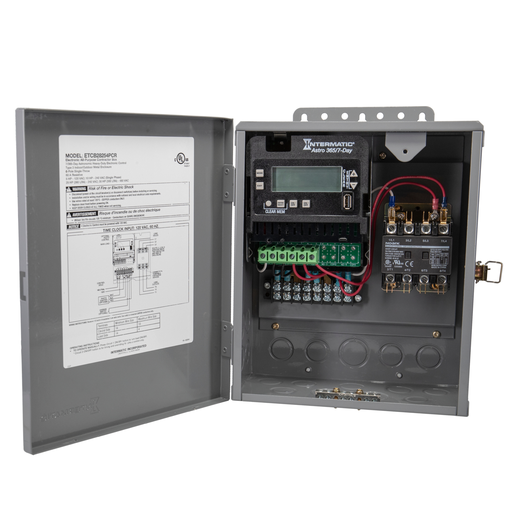

The ETCB28254PCR Expanded 4-Pole lighting contractor box provides an easy-to-install solution for a variety of application needs. The contractor box comes with a pre-installed astronomic timer with 7-day, holiday/exception period scheduling, USB for schedule transfer and backup, an electrically held 40 A contactor, as well as inputs for overrides and surge protective devices.

Technical Information

Applications
Indoor Lighting Control,Machinery & Pump Controls,Motor Control,Outdoor Lighting Control,Timing/Scheduling ON/OFF

Manufacturer Information

Brand
NA

General Product Info

12-Digit UPC
078275159181
Color
Gray
Product UPC
07827515918

Dimensions

Depth
4-3/4 Inch
Height
11-3/4 Inch
Warranty Length
2 yr
Width
10 in

Certifications and Compliance

Country of Origin
Mexico
Features
  • 7-Day/365-day astronomic scheduling.
  • Up to 96 scheduling set points.
  • Up to 50 holiday/exception period set points.
  • USB port for backing up or transferring schedules.
  • Built-in 40 A, 4-pole contactor for more robust loads.
  • Input for optional \"timed\" photo control override.
  • Input for other types of switches/sensors.
  • Terminals for adding surge protection.
  • 100-hour supercapacitor eliminates the need for battery replacement.
  • Requires 120 VAC, 60 Hz for powering the control.
