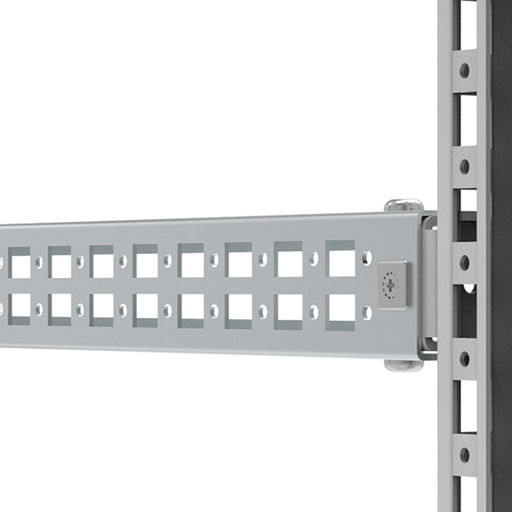

NVENT HOF CLPF800 Mounting profile

Manufacturer: nVent Hoffman | Catalog # CLPF800 | Codale Part # 4719497
$456.54/ea
ea
Log in or register to view your price, purchase history, and more!
Experiencing long lead times. Please call for availability.
Primary Spec Sheet
Mounting profiles mount in all directions, providing full mounting flexibility of components. This Mounting profiles, CLPF, CLPF800 item measures 40x725x25mm with a material of Mild Steel, finish Zinc Plated.

Technical Information

Applications
Controls and Drives; Factory Automation and Process Control
Material
Steel
Size
1.57 x 28.52 x 0.98 inch
Type
IEC Enclosure Accessories

Packaging

Pkg Qty
4

Manufacturer Information

Brand
nVent Hoffman

General Product Info

12-Digit UPC
783510459741
Color
Unpainted
Construction
16 gauge
Finish
Zinc
Product UPC
78351045974
Weight
6.28 lb

Dimensions

Depth
0.98 Inch
Height
1.57 Inch
Length
31.87 Inch
Thickness
1.5 mm
Width
28.52 in
Features
  • Description: The CLPF profile system is a 40 mm wide and 25 mm high profile, which can be mounted in all directions on the enclosure's frame. It can also be used in combination with the CLPK and the VB profiles. By turning the profile it can be used as a standard CP20/40 profile in combination with GLM 40/6 sliding nut, to mount installation material which needs adjusting in depth. The profiles, when mounted onto the enclosure's frame are flush with the enclosure's profiles. Two rows of hole patterns for cage nut fixing and self tapping screws are provided. For 90 mm wide profiles two profiles can be mounted next to each other.
  • Material: Zinc plated steel.
  • Pack quantity: 4 profiles including snap-line for fixing.
