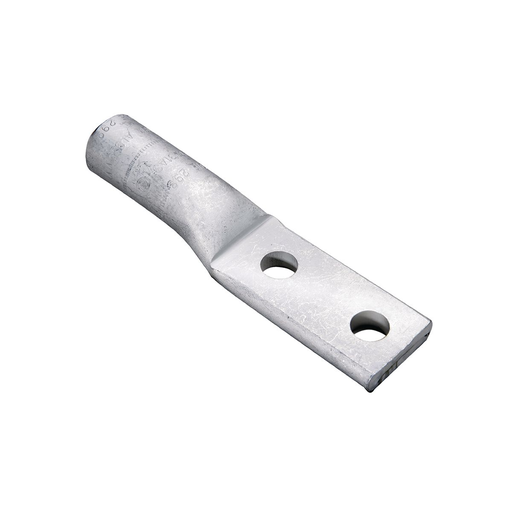

BURNDY YA34A5NT119 HYLUG (NARROW TONGUE)

Manufacturer: Hubbell-Burndy | Catalog # YA34A5NT119 | Codale Part # 4719821
$41.93/ea
ea
Log in or register to view your price, purchase history, and more!
Experiencing long lead times. Please call for availability.
Primary Spec Sheet
AL Terminal, AL9CU, Internal Chamfer, Tin Plated, Prefilled PENETROX™ A13, End Cap, UL/CSA, 90.C, Up to 35kV, Color Code, Die Index.

Technical Information

Color Coding
Pink
Conductor Material
ALUMINUM / COPPER
Conductor Size
500 kcmil
Connection Type
Dual Rated
Material
Aluminum
Max Voltage
35000 V
Wire Size
500 kcmil

Manufacturer Information

Brand
Burndy

General Product Info

12-Digit UPC
781810273173
Finish
Tin Plated
Product UPC
78181027317

Dimensions

Hole Size
0.41 in
Overall Length
141 mm

Certifications and Compliance

Country of Origin
USA
CSA
No
Features
  • UL486A-486B Listed and CSA Certified
  • Aluminum terminals are dual rated to accommodate both copper and aluminum wire and are indicated with AL-CU on the connector - AL9CU is UL Listed 90°C, up to 35kV, AL7CU is UL Listed 75°C, up to 35kV
  • Barrel is designed with an internal chamfer at the wire entry to ensure smooth insertion of the wire, preventing possible damage of the wire strands during insertion
  • Electro-tin plated unless otherwise specified to reduce galvanic corrosion (bimetallic) and resist corrosive elements
  • Connectors are clearly marked with wire size, die index, color code, and crimp location bands
  • Factory pre-filled with PENETROX Type A13 oxide inhibitor
  • Color coded end caps are factory inserted in the barrels to match the die color code and prevent foreign materials from entering the barrel
  • Aluminum oxidation is not easily detected but causes resistance in a connection, it is imperative the proper preparation takes place prior to making an aluminum-to-aluminum connection
