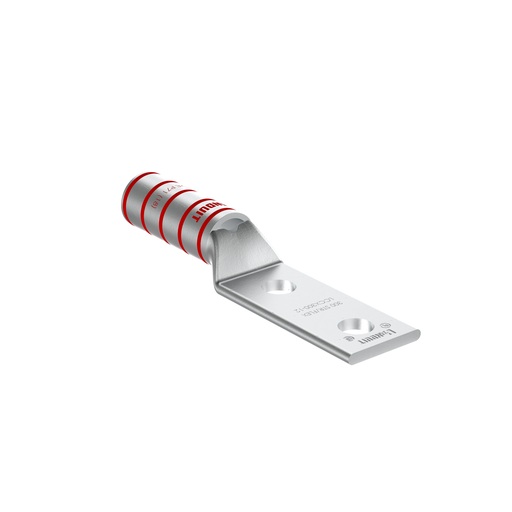

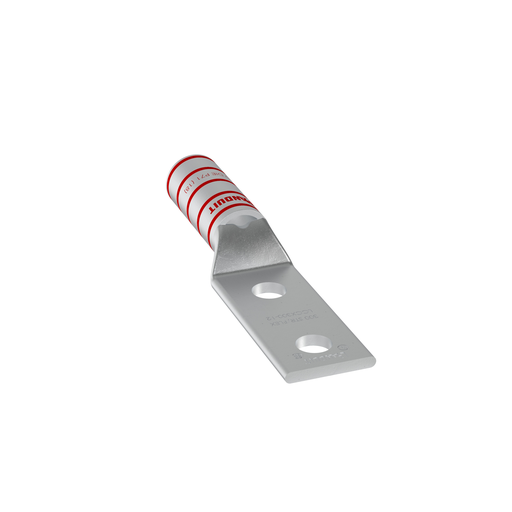

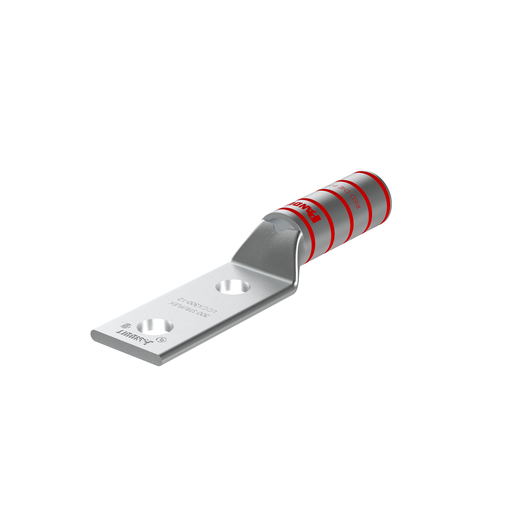

Product image for PAN LCCX300-12-6 Pan-Lug™ LCCX300-1
Image thumbnail 0
Image thumbnail 1
Image thumbnail 2
Image thumbnail 3
Image thumbnail 4
Email

PAN LCCX300-12-6 Pan-Lug™ LCCX300-1

Manufacturer: Panduit | Catalog # LCCX300-12-6 | Codale Part # 4733773
$7,830.48/c (100 ea)
ea
Log in or register to view your price, purchase history, and more!
Experiencing long lead times. Please call for availability.
Buy American Compliant Buy American Compliant Primary Spec Sheet Product Catalog Page Installation / Instruction Manual
The LCCX300-12-6 Tin Plated Copper Compression Lug, two-hole, long barrel, has color-coded barrels marked with Panduit and specified competitor die index numbers for proper crimp die selection. The long barrel maximizes the number of crimps and provides premium wire pull-out strength and performance. The generously beveled wire entry prevents bent back strands when inserting the conductor into the barrel. UL Listed and CSA Certified.

Technical Information

Barrel Length
2.3 in
Cable Size
AWG
Material
Copper
Number of Holes
2 Hole
Stud Size
1/2 In.
Tongue Thickness
0.18 in
Tongue Type
Standard
Tongue Width
1.39 in
Type
Compression Lug

Manufacturer Information

Brand
Panduit Corp.
Sub Brand
Pan-Lug™

General Product Info

12-Digit UPC
074983445622
Color
Red
Product UPC
07498344562

Dimensions

Outer Diameter
0.95 in
Overall Length
5.85 in

Certifications and Compliance

Buy American Compliant
Y
Country of Origin
Mexico
Standards and Certifications
  • Standards Met: CSA certified C22.2 No. 65-13, UL Listed to 486A-486B File #E52164, ABS approved
