PAN UTP28X3MBU Cat 6A 28 AWG UTP Co

Manufacturer: Panduit | Catalog # UTP28X3MBU | Codale Part # 4734466
$75.25/ea
ea
Log in or register to view your price, purchase history, and more!
Experiencing long lead times. Please call for availability.
Buy American Compliant Buy American Compliant Primary Spec Sheet Product Catalog Page Installation / Instruction Manual

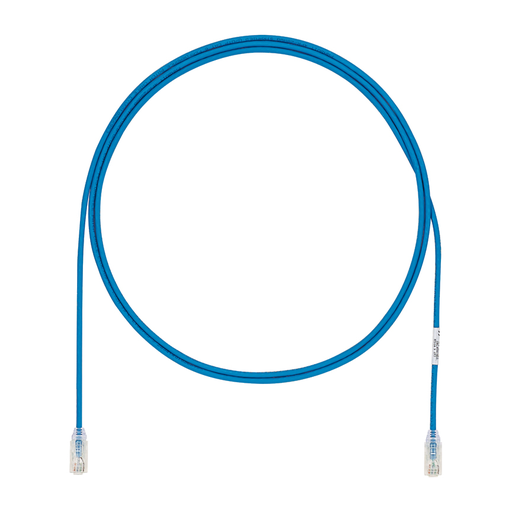

The TX6A-28™ Cat 6A UTP Patch Cord is constructed of 28 AWG, unshielded, twisted pair, solid, CM/LSZH cable with enhanced performance modular plugs. The use of 28 AWG cable ensures that this patch cord has a small diameter, making it easy to install and work with. The patented tangle free latch prevents snags and provides easy release saving time on frequent moves, adds, and changes. The patch cord is 3 meters in length, 0.185 inches (4.7mm) nominal in diameter, and blue.

Technical Information

Applications
(1) 1000BASE-T (Gigabit Ethernet), 100BASE-T (Fast Ethernet) (2 ) 155 Mb/s ATM, 622 Mb/s ATM (3) Digital video and broadband/baseband analog video (4) Voice/data systems (5) Voice over Internet Protocol (VoIP)
Boot Color
Clear
Cable Type
28 AWG F/UTP
Conductor Material
Copper
Conductor Size
28 AWG
Conductor Type
Solid
Connector Type
Modular Plug
Material
Copper
Max Operating Temperature
75 degrees C
Min Operating Temperature
-10 degrees C
Performance Level
Category 6A
Plug Type
Modular Plug with Bulkhead and Dust Cap
Temperature Rating
167
Type
Category 6A
Wire Size
28 AWG

Manufacturer Information

Brand
Panduit Corp.
Sub Brand
PanNet

General Product Info

12-Digit UPC
074983132508
Color
Blue
Jacket Material
LSZH Material
Product UPC
07498313250

Dimensions

Cable Length
3 m
Length
9.84 Inch
Outside Diameter
4.7 mm
Overall Length
3 m

Certifications and Compliance

Buy American Compliant
Y
Country of Origin
China,Mexico,Romania
Standards and Certifications
  • Standards Met: Exceeds all ANSI/TIA-568.2-D Category 6A and ISO 11801 Class EA standards for all frequencies up to 500 MHz; Meets ANSI/TIA-1096-A; Meets IEC 60603-7; Meets IEC 60332-1, IEC 60754-1, IEC 61034-2; UL 1863; Rated for 2500 cycles with IEEE 802.3af / 802.3at and 802.3bt type 3 and type 4; RoHS Compliant
