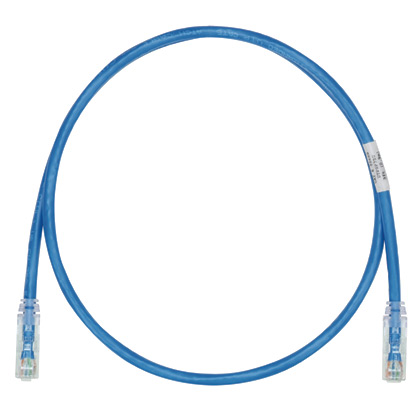

Product image for PANDUIT UTPSPL1MBUY The TX6. PLUS Cat 6 UTP Patch Cord is a 1-Meter, Blue cord constructed of 24 AWG, unshielded, twisted pair, stranded, LSZH (60332-1) cable with high-performance modular plugs. Its tangle-free latch prevents snags and ensures a fast release, streamlining moves, adds, and changes. The slender strain relief boot provides easy access in high-density applications. Enabled with RapidID, the product has pre-installed barcodes for simple port mapping using RapidID software.
Image thumbnail 0
Image thumbnail 1
Image thumbnail 2
Image thumbnail 3
Email

PANDUIT UTPSPL1MBUY The TX6. PLUS Cat 6 UTP Patch Cord is a 1-Meter, Blue cord constructed of 24 AWG, unshielded, twisted pair, stranded, LSZH (60332-1) cable with high-performance modular plugs. Its tangle-free latch prevents snags and ensures a fast release, streamlining moves, adds, and changes. The slender strain relief boot provides easy access in high-density applications. Enabled with RapidID, the product has pre-installed barcodes for simple port mapping using RapidID software.

Manufacturer: PANDUIT | Catalog # UTPSPL1MBUY | Codale Part # 4752833
$26.33 /ea
ea
Log in or register to view your price, purchase history, and more!
Experiencing long lead times. Please call for availability.
Buy American Compliant Buy American Compliant Prop 65 Warning Prop 65 Warning Primary Spec Sheet Product Catalog Page
The TX6™ PLUS Cat 6 UTP Patch Cord is a 1-Meter, Blue cord constructed of 24 AWG, unshielded, twisted pair, stranded, LSZH (60332-1) cable with high-performance modular plugs. Its tangle-free latch prevents snags and ensures a fast release, streamlining moves, adds, and changes. The slender strain relief boot provides easy access in high-density applications. Enabled with RapidID, the product has pre-installed barcodes for simple port mapping using RapidID software.

Technical Information

Applications
Ethernet 10BASE-T, 100BASE-T (Fast Ethernet), 1000BASE-T, 10GBASE-T, 155 Mb/s ATM, 622 Mb/s ATM, 1.2 Gb/s ATM, Token ring 4/16, Digital video and broadband/baseband analog video and VoIP
Boot Color
Clear
Cable Type
U/UTP
Conductor Material
Copper
Conductor Type
Stranded
Max Operating Temperature
140 degrees F
Min Operating Temperature
-10 degrees C
Plug Type
Modular Plug
Type
Patch Cord
Wire Size
24 AWG

Manufacturer Information

Brand
Panduit Corp.
Sub Brand
Pan-Net®

General Product Info

12-Digit UPC
074983173488
Color
Blue
Jacket Material
LSZH Material
Product UPC
07498317348

Dimensions

Length
3.28 Foot
Outside Diameter
5.8 mm
Overall Length
3.3 ft

Certifications and Compliance

Buy American Compliant
Y
Country of Origin
China,Mexico,Romania

Certifications & Compliance

Prop 65 Warning
No
Standards and Certifications
  • Standards Met: Exceeds all ANSI/TIA-568.2-D Category 6A and ISO 11801 Class EA standards for all frequencies up to 500 MHz; Meets ANSI/TIA-1096-A; Meets IEC 60603-7; Meets IEC 60332-1, IEC 60754-1, IEC 61034-2; UL 1863; Rated for 2500 cycles with IEEE 802.3af / 802.3at and 802.3bt type 3 and type 4; RoHS Compliant
Prop 65
  • No
