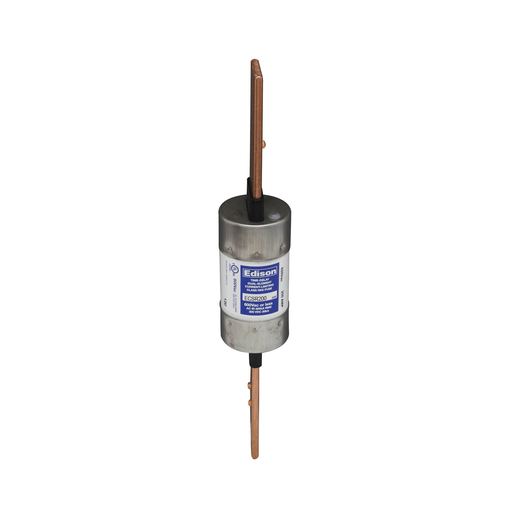

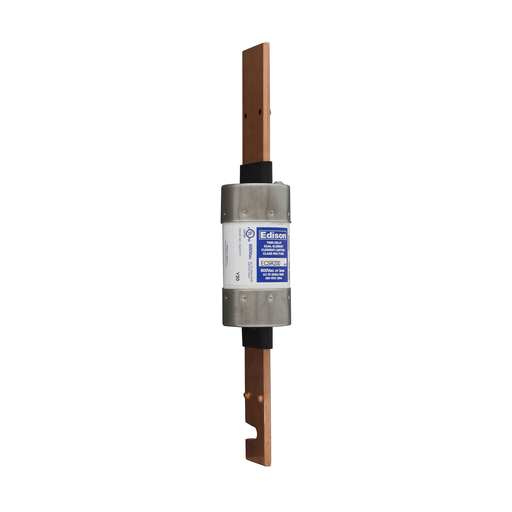

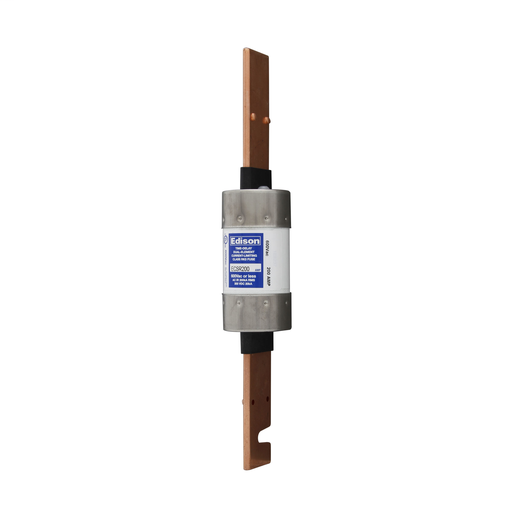

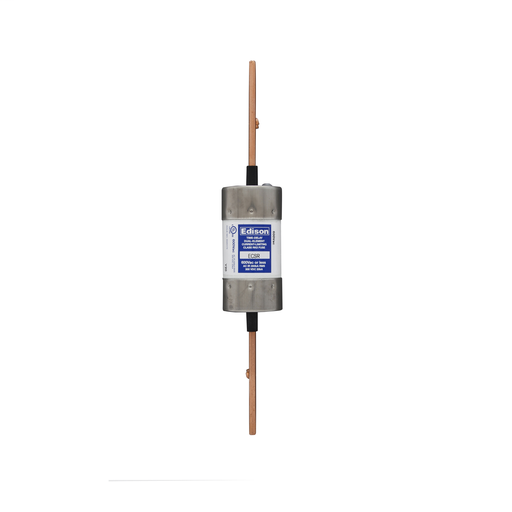

BUSS ECSR200 UL CLASS RK-5 TIME DEL

Manufacturer: Eaton Bussmann | Catalog # ECSR200 | Codale Part # 4788759
*Call For Price*
Log in or register to view your price, purchase history, and more!
Experiencing long lead times. Please call for availability.
Primary Spec Sheet
Eaton Edison ECSR fuse, Time-delay current-limiting fuse, Superior overload and cycling capabilities, 200 A, Dual, Class RK5, Non-indicating, Blade end x blade end, 10 sec at 500%, 200 kAIC, Standard, 600 V

Technical Information

Amperage
200 Amp
Applications
AC Power Distribution System Mains, Feeders, Branch Circuits, Motors and Motor Branch Circuits, Transformers and Inductive Loads, Lighting, Heating
Connection Type
Blade
End Type
Blade
Interrupt Rating
200 kAIC
Response Time
10 S at 500%
Size
1.61 In Diameter X 9.63 In Length
Tc Connection
Blade End X Blade End
Type
Current Limiting,Time-Delay
Voltage
600 Volt

Manufacturer Information

Brand
Bussmann
Sub Brand
Bullet

General Product Info

12-Digit UPC
782634508489
Class
Class RK5
Product UPC
78263450848
Weight
1.5 lb

Dimensions

Diameter
1.61 Inch
Height
9.63 Inch
Length
1.61 Inch
Width
1.61 in
