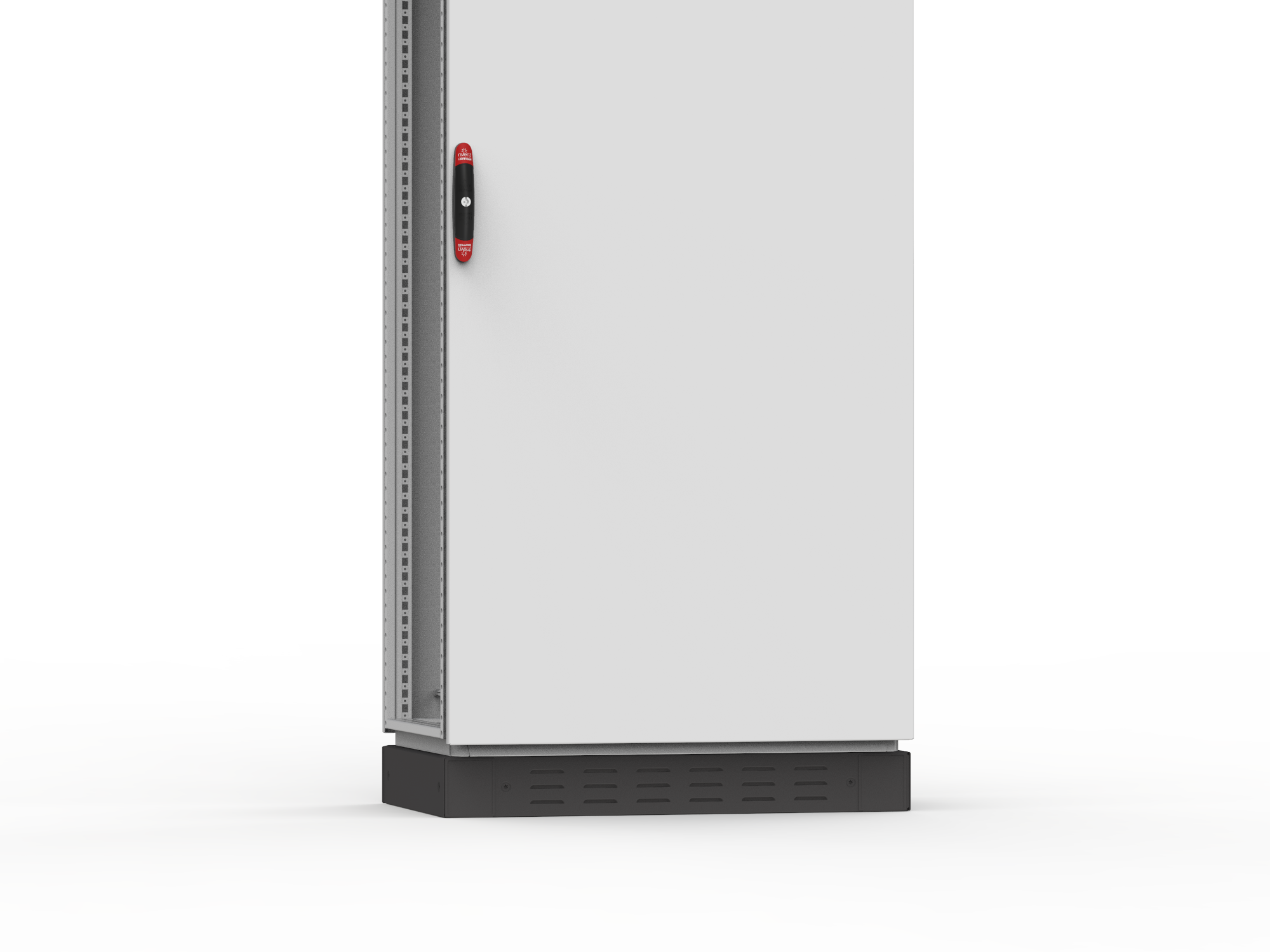

Image thumbnail 1
Email

NVENT HOF PV1080 Plinth front and r

Manufacturer: nVent Hoffman | Catalog # PV1080 | Codale Part # 4820585
$524.03 /ea
ea
Log in or register to view your price, purchase history, and more!
Experiencing long lead times. Please call for availability.
Primary Spec Sheet
Ventilated Front/Rear Plinths, PV allows for cabling without any restrictions in accordance with VDE0113 standards. This Ventilated Front/Rear Plinths, PV, PV1080 item measures 100x798x62mm with a material of Mild Steel, finish Zinc Plated.

Technical Information

Applications
Stationary Machinery and Equipment Outside Factory
Color Coding
RAL 7022
Material
Steel
Size
3.94 x 31.42 x 2.44 inch
Type
IEC Enclosure Accessories

Packaging

Pkg Qty
2

Manufacturer Information

Brand
nVent Hoffman

General Product Info

12-Digit UPC
783510526740
Color
RAL 7022 Umbra Gray
Construction
TH Angle Threaded 5/16 TH
Finish
Powder Coated
Product UPC
78351052674
Weight
10.5 lb

Dimensions

Depth
2.44 Inch
Height
3.94 Inch
Length
1 Inch
Thickness
1.5 mm
Width
31.42 in
Features
  • Description: Front and rear plinth sections with ventilated panels. Recommended to be used in combination with the ventilated bottom plate CVB. For cabling without any restrictions and in accordance with the VDE 0113 standard. The plinth consists of four corner pieces with removable front covers. All panels have double returns for added strength. Only available in height of 100 mm.
  • Material: Corner pieces in 2 mm and panels in 1.5 mm mild steel.
  • Finish: RAL 7022 structured powder coating.
  • Pack quantity: 1 set of 4 corner pieces including covers. Front and rear panel with mounting accessories for side panels PS or transversal profiles PCP.
  • Mounting requirements: Add the side panels PS for a complete plinth. When combining enclosures it is recommended to add transversal panels PCP for cable duct support and extra rigidity. Use ventilated bottom plates CVB to get better enclosure ventilation.
