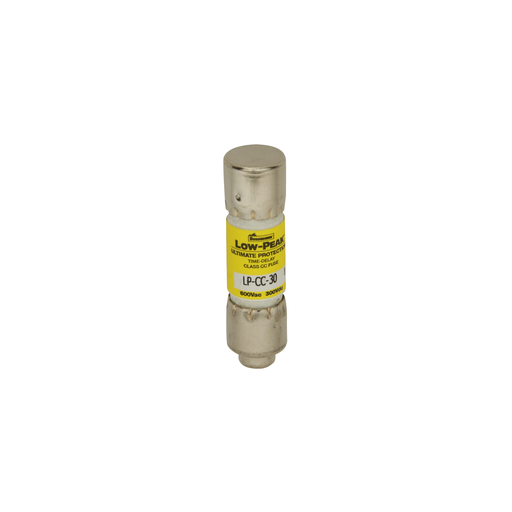

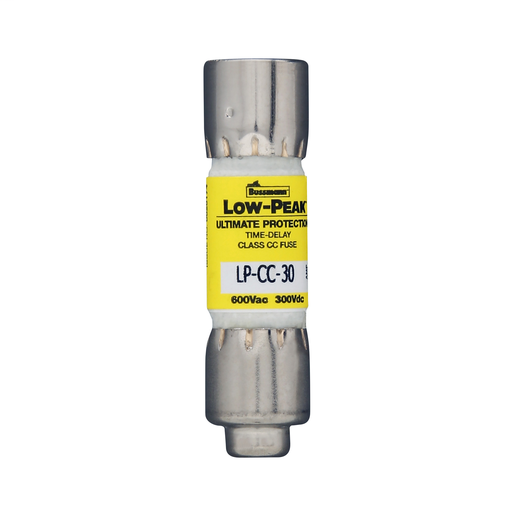

Bussmann LP-CC-6/10 6/10amp Low-Peak™ Time-Delay, Current-Limiting, Class-CC Fuse, Rejection-Type, 600Vac/300Vdc

Manufacturer: Eaton Bussmann | Catalog # LP-CC-6/10 | Codale Part # 48280
$38.42/ea
ea
Log in or register to view your price, purchase history, and more!
Experiencing long lead times. Please call for availability.
Primary Spec Sheet
Eaton Bussmann Series Class CC fuse, LP-CC, time-delay, dual-element current limiting fuse, 0.6 A, rejection style fuse, interrupting rating of 20 kA at 150 Vdc and 200 kA at 600 Vac

Technical Information

Amperage
0.6 Amp
Applications
Specialized Circuits, Industrial Control, Isolated, In-Line Fuse Holder
Connection Type
Ferrule
End Type
Ferrule
Interrupt Rating
20 kAIC
Material
Melamine
Response Time
12 S at 200%
Size
13/32 In Diameter X 1-1/2 In Length
Tc Connection
Ferrule end x ferrule end
Type
Current Limiting,Time-Delay
Voltage
300 Volt

Manufacturer Information

Brand
Bussmann
Sub Brand
Low-Peak

General Product Info

12-Digit UPC
051712180412
Class
CC
Product UPC
05171218041
Weight
.15 lb

Dimensions

Diameter
0.46 Inch
Height
1-1/2 Inch
Length
0.41 Inch
Width
.41 in
