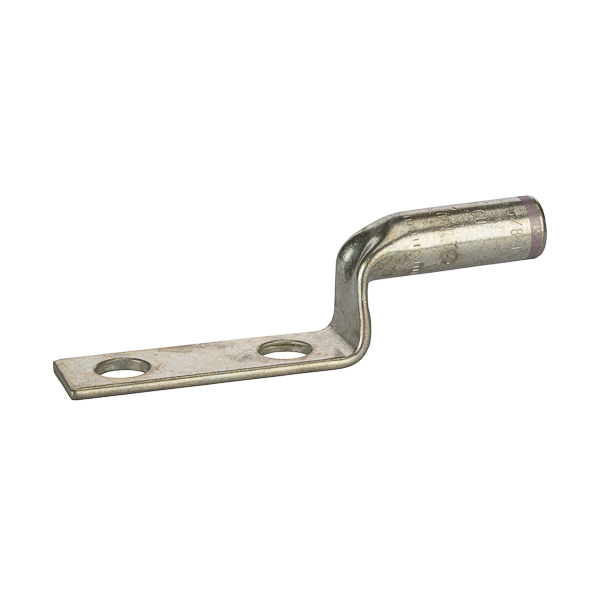

Product image for NSI SL40N CU CMP Lug Stack 4/0 AWG
Image thumbnail 0

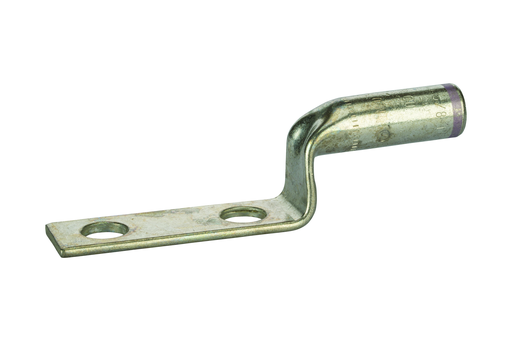

Image thumbnail 1
Image thumbnail 2
Email

NSI SL40N CU CMP Lug Stack 4/0 AWG

Manufacturer: NSI Connectors & Lugs | Catalog # SL40N | Codale Part # 49138
$43.29/ea
ea
Log in or register to view your price, purchase history, and more!
Experiencing long lead times. Please call for availability.
Primary Spec Sheet
2 Hole Long Barrel Copper Stacked Compression Lug 4/0 AWG - 1/2" Bolt Long Barrel Copper Stacked Compression Lugs is a type of copper compression connector that is produced from high conductivity copper tubing. They are designed for use with the L-N Series. They are tin-plated to provide corrosion resistance and are marked with die index and color coded for easy reference.

Technical Information

Applications
Terminate, Splice, Tap Power Connectors
Cable Size
4/0 AWG
Material
Copper
Max Temperature
194 degrees F
Mounting Type
1/2 Mounting Holes
Number of Holes
2 Hole
Size
L=5.31 - W=1.00 - OD=.690 - ID=.550
Standard
UL486
Stud Size
1/2 in
Type
Long Barrel Stacking Lugs
Voltage
600 Volt

Manufacturer Information

Brand
NSI Industries
Sub Brand
Copper Compression

General Product Info

12-Digit UPC
662381035523
Color
Purple
Environmental Conditions
90 degrees C
Finish
Tin Plated
Product UPC
66238103552

Dimensions

Height
1.54 Inch
Length
5.31 Inch
Warranty Length
1 yr
Width
1 in

Certifications and Compliance

Country of Origin
India
Features
  • Designed for use with the L-N Series
  • Produced from high conductivity copper tubing for heavy duty applications
  • Tin-plated to provide corrosion resistance
  • Listed for 35kV maximum when properly installed, Marked with die index and color coded
  • For use with LN Series
Certifications and Standards
  • cULus
  • UL Listed
  • UL 486A
Additional Notes
  • Max ampacity is based on NEC 310.15, insulation type, and conductor material. Please consult your current NEC manual; EXPANDED WIRE RANGE when installed with NSI N12ID dieless compression tool. UL Listed with other tools: FOR TOOL/DIE CRIMPING INFORMATION, PLEASE SEE TABLE ON PAGE 87
