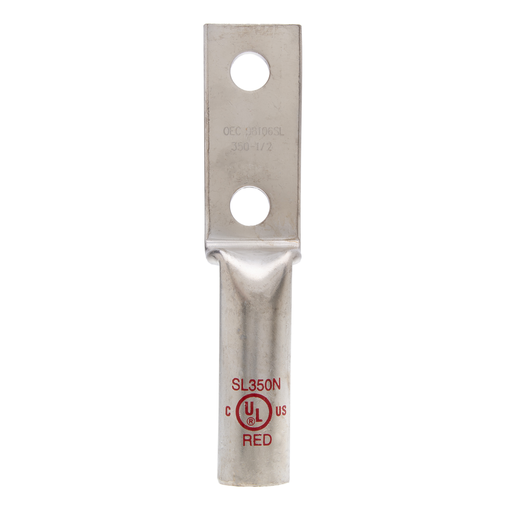

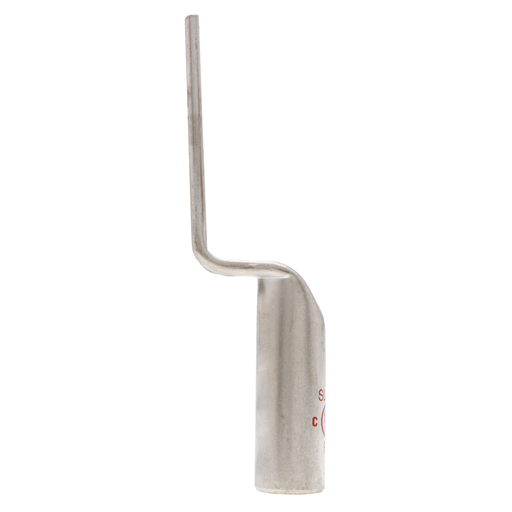

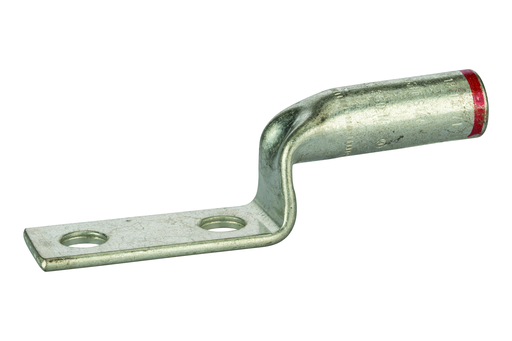

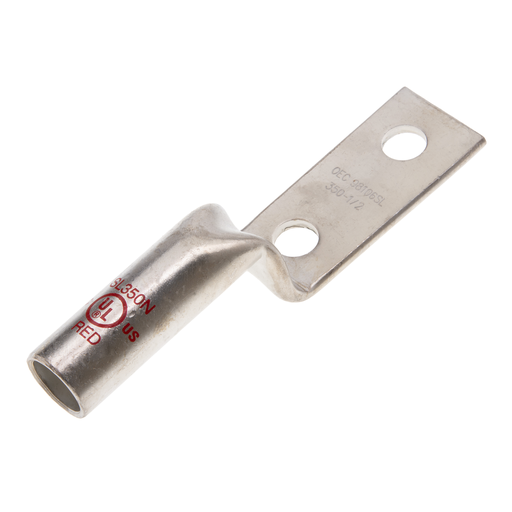

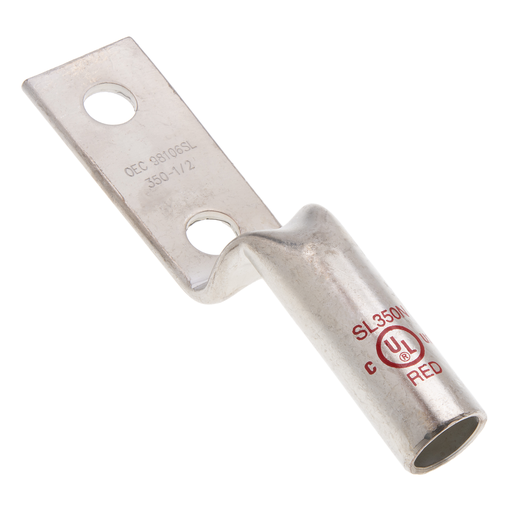

NSI SL350N 1/2 Inch 350 MCM Red Copper Long Barrel 2-Hole Compression Stacking Lug

Manufacturer: NSI Connectors & Lugs | Catalog # SL350N | Codale Part # 49140
$60.99/ea
ea
Log in or register to view your price, purchase history, and more!
Experiencing long lead times. Please call for availability.
Primary Spec Sheet
2 Hole Long Barrel Copper Stacked Compression Lug 350 MCM - 1/2" Bolt Long Barrel Copper Stacked Compression Lugs is a type of copper compression connector that is produced from high conductivity copper tubing. They are designed for use with the L-N Series. They are tin-plated to provide corrosion resistance and are marked with die index and color coded for easy reference.

Technical Information

Applications
Terminate, Splice, Tap Power Connectors
Cable Size
350 MCM
Material
Copper
Max Temperature
194 degrees F
Mounting Type
1/2 Mounting Holes
Number of Holes
2 Hole
Size
L=5.78 - W=1.24 - OD=.870 - ID=.700
Standard
UL486
Stud Size
1/2 in
Type
Long Barrel Stacking Lugs
Voltage
600 Volt

Manufacturer Information

Brand
NSI Industries
Sub Brand
Copper Compression

General Product Info

12-Digit UPC
662381035554
Color
Red
Environmental Conditions
90 degrees C
Finish
Tin Plated
Product UPC
66238103555

Dimensions

Height
1.86 Inch
Length
5.78 Inch
Warranty Length
1 yr
Width
1.24 in

Certifications and Compliance

Country of Origin
India
Features
  • Designed for use with the L-N Series
  • Produced from high conductivity copper tubing for heavy duty applications
  • Tin-plated to provide corrosion resistance
  • Listed for 35kV maximum when properly installed, Marked with die index and color coded
  • For use with LN Series
Certifications and Standards
  • cULus
  • UL Listed
  • UL 486A
Additional Notes
  • Max ampacity is based on NEC 310.15, insulation type, and conductor material. Please consult your current NEC manual; EXPANDED WIRE RANGE when installed with NSI N12ID dieless compression tool. UL Listed with other tools: FOR TOOL/DIE CRIMPING INFORMATION, PLEASE SEE TABLE ON PAGE 87
