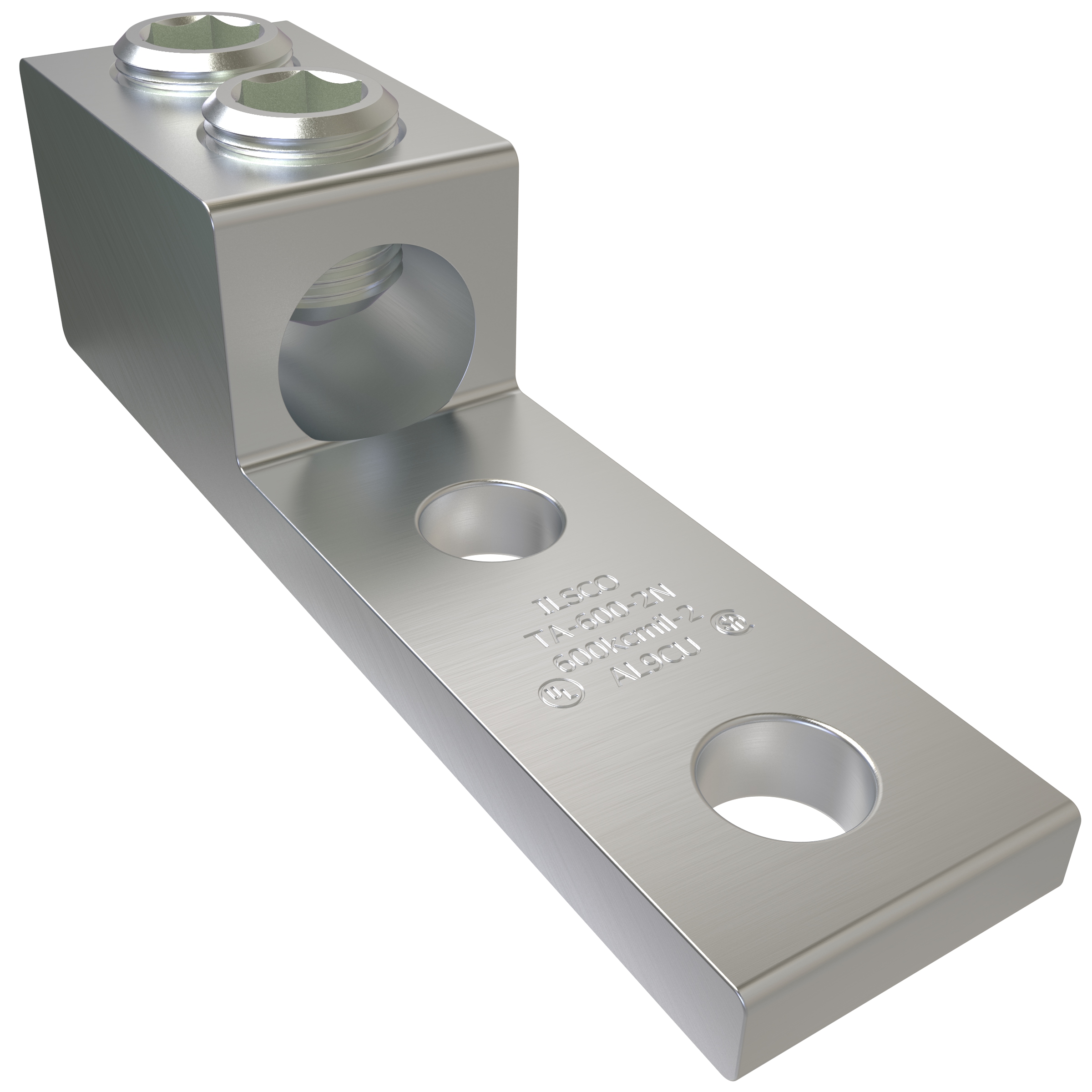

Product image for Ilsco TA-600-2N Aluminum Mechanical Lug, Dual Rated, Conductor Range 600-2, 1 Port, 2 Holes, 1/2in Bolt Size, 1-3/4in Hole Spacing, 2 Screws, Tin Plated, UL, CSA
Image thumbnail 0
Image thumbnail 1
Image thumbnail 2
Email

Ilsco TA-600-2N Aluminum Mechanical Lug, Dual Rated, Conductor Range 600-2, 1 Port, 2 Holes, 1/2in Bolt Size, 1-3/4in Hole Spacing, 2 Screws, Tin Plated, UL, CSA

Manufacturer: Ilsco | Catalog # TA-600-2N | Codale Part # 491423
$46.17/ea
ea
Log in or register to view your price, purchase history, and more!
Experiencing long lead times. Please call for availability.
Primary Spec Sheet
ILSCO Mechanical Lug, One Conductor, Mechanical connection, Dual Rated, Aluminum material, Tin plated connector,2 mounting hole(s), mounting bolt/stud size 1/2 in, mounting hole spacing 1.75 in., UL 486A/B Listed, C22.2 No. 65-03, Copper/Aluminum Primary Conductor 600 kcmil - 2 Str, 1 conductors, 1 ports/wireways, Drive Type Main 1/2 Internal Hex, rated for 35 kV, primary color Silver, 1 poles,

Technical Information

Applications
Mechanical Lug, One Conductor
Conductor Material
Aluminum,Copper
Conductor Type
Stranded
Connection Type
Mechanical
Direct Burial?
No
Material
Aluminum
Mounting Hole Size
0.562 in
Number of Conductors
1
Number of Holes
2 Hole
Standard
UL File Number: E6207,UL Specifications: UL 486A-B,CSA File Number: LR-29601
Tc Connection
Mechanical
Temperature Rating
90 degrees C
Type
TA:1 CONDUCTOR AL/CU
Voltage
35 Volt

Manufacturer Information

Brand
Ilsco
Sub Brand
ILSCO

General Product Info

12-Digit UPC
783669892253
Color
Silver
Finish
Tin Plated
Product UPC
78366989225
Weight
0.451 lb

Dimensions

Height
1-1/2 Inch
Length
5-1/2 Inch
Width
1.375 in
