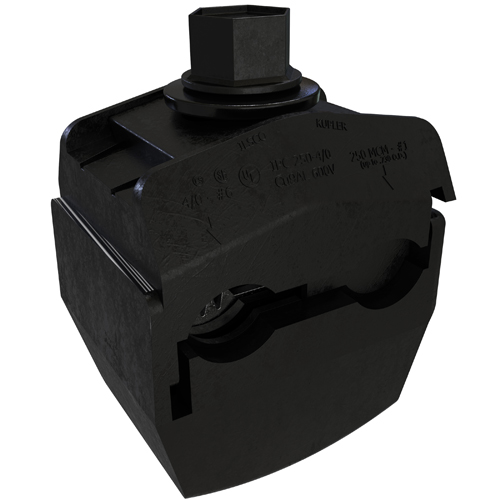

Product image for Ilsco IPC-250-4/0 KUP-L-Tap Insulation Piercing Copper Connector, Dual Rated, Main Conductor Range 250-1, Tap Range 4/0-6, Tin Plated, UL, CSA
Image thumbnail 0
Image thumbnail 1
Image thumbnail 2
Email

Ilsco IPC-250-4/0 KUP-L-Tap Insulation Piercing Copper Connector, Dual Rated, Main Conductor Range 250-1, Tap Range 4/0-6, Tin Plated, UL, CSA

Manufacturer: Ilsco | Catalog # IPC-250-4/0 | Codale Part # 49169
$82.49/ea
ea
Log in or register to view your price, purchase history, and more!
42 available

For Delivery

Not in local stock *
Check your local branch
Primary Spec Sheet MDM Safety Data Sheet
KUP-L-Tap Insulation Piercing Connector, Mechanical connection, Dual Rated, Copper material, Tin plated connector, UL 486A/B Listed, C22.2 No. 65-03, Copper/Aluminum Primary Conductor 250 kcmil - 1 Str, Copper/Aluminum Secondary Conductor 4/0 Str - 6 Str, 2 conductors, Nylon insulation, Drive Type Main 5/8 External Hex, rated for 600 V, primary color Black, 1 poles,

Technical Information

Amperage
CU:260;AL:205
Applications
Insulation Piercing Connector
Conductor Material
Aluminum,Copper
Conductor Size
1 AWG-250 kcmil/6-4/0 AWG
Conductor Type
Copper and Aluminum
Connection Type
Mechanical
Direct Burial?
No
Material
Nylon
Number of Conductors
2
Number of Ports
1
Tc Connection
Mechanical
Temperature Rating
90 degrees C
Type
Dual-Rated
Voltage
600 Volt

Manufacturer Information

Brand
Ilsco
Sub Brand
Kup-L-Tap®

General Product Info

12-Digit UPC
783669523737
Color
Black
Finish
Tin Plated
Product UPC
78366952373
Used With
Class B or C Stranded Conductor
Weight
1.325 lb

Dimensions

Height
3.332 Inch
Length
1.87 Inch
Width
2.345 in
