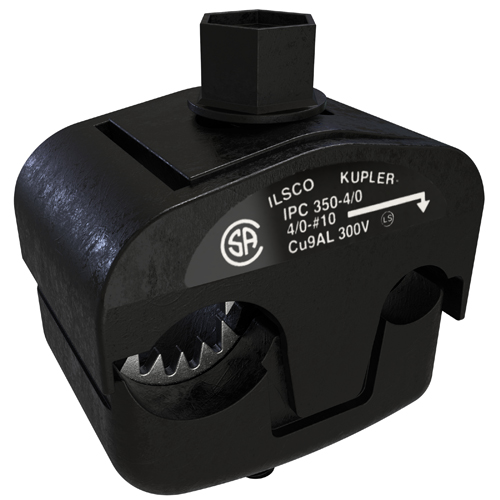

Product image for Ilsco IPC-350-4/0 KUP-L-Tap Insulation Piercing Copper Connector, Dual Rated, Main Conductor Range 350-4/0, Tap Range 4/0-10, Tin Plated, UL, CSA
Image thumbnail 0
Image thumbnail 1
Image thumbnail 2
Email

Ilsco IPC-350-4/0 KUP-L-Tap Insulation Piercing Copper Connector, Dual Rated, Main Conductor Range 350-4/0, Tap Range 4/0-10, Tin Plated, UL, CSA

Manufacturer: Ilsco | Catalog # IPC-350-4/0 | Codale Part # 49172
$152.28/ea
ea
Log in or register to view your price, purchase history, and more!
Experiencing long lead times. Please call for availability.
Primary Spec Sheet MDM Safety Data Sheet
KUP-L-Tap Insulation Piercing Connector, Mechanical connection, Dual Rated, Copper material, Tin plated connector, UL 486A/B Listed, C22.2 No. 65-03, Copper/Aluminum Primary Conductor 350 kcmil - 4/0 Str, Copper/Aluminum Secondary Conductor 10 Sol and 4/0 Str - 10 Str, 2 conductors, Nylon insulation, Drive Type Main 5/8 External Hex, rated for 300 V (480 Grounded Y System), primary color Black, 1 poles,

Technical Information

Amperage
CU:260;AL:205
Applications
Insulation Piercing Connector
Conductor Material
Aluminum,Copper
Conductor Type
Solid,Stranded
Connection Type
Mechanical
Direct Burial?
No
Material
Copper
Number of Conductors
2
Number of Ports
1
Tc Connection
Mechanical
Temperature Rating
90 degrees C
Type
IPC:KUP-L-TAP
Voltage
300 Volt

Manufacturer Information

Brand
Ilsco
Sub Brand
KUP-L-Tap

General Product Info

12-Digit UPC
783669532746
Color
Black
Finish
Tin Plated
Product UPC
78366953274
Weight
0.496 lb

Dimensions

Height
3.195 Inch
Length
1.658 Inch
Width
2.418 in
