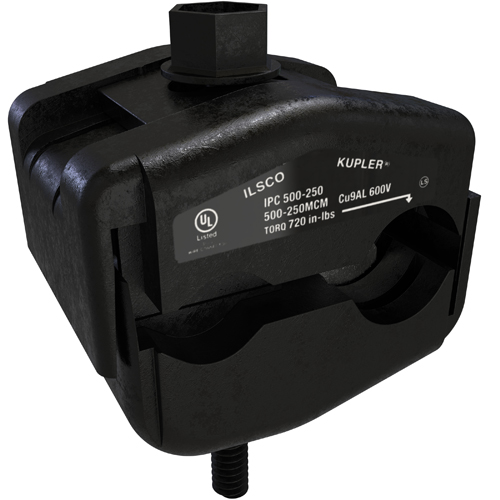

Product image for Ilsco IPC-500-250 KUP-L-Tap Insulation Piercing Copper Connector, Dual Rated, Main Conductor Range 500-250, Tap Range 250-4, Tin Plated, UL, CSA
Image thumbnail 0
Image thumbnail 1
Image thumbnail 2
Email

Ilsco IPC-500-250 KUP-L-Tap Insulation Piercing Copper Connector, Dual Rated, Main Conductor Range 500-250, Tap Range 250-4, Tin Plated, UL, CSA

Manufacturer: Ilsco | Catalog # IPC-500-250 | Codale Part # 49174
$198.62 /ea
ea
Log in or register to view your price, purchase history, and more!
Experiencing long lead times. Please call for availability.
Primary Spec Sheet MDM Safety Data Sheet
KUP-L-Tap Insulation Piercing Connector, Mechanical connection, Dual Rated, Copper material, Tin plated connector, UL 486A/B Listed, C22.2 No. 65-03, Copper/Aluminum Primary Conductor 500 kcmil - 250 kcmil, Copper/Aluminum Secondary Conductor 250 kcmil - 4 Str, 2 conductors, Nylon insulation, Drive Type Main 5/8-11/16 External Hex, rated for 600 V, primary color Black, 1 poles,

Technical Information

Amperage
CU:290;AL:230
Applications
Insulation Piercing Connector
Conductor Material
Aluminum,Copper
Conductor Size
250-500 kcmil
Conductor Type
Copper and Aluminum
Connection Type
Mechanical
Direct Burial?
No
Material
Nylon
Number of Conductors
2
Number of Ports
1
Tc Connection
Mechanical
Temperature Rating
90 degrees C
Type
Dual-Rated
Voltage
600 Volt

Manufacturer Information

Brand
Ilsco
Sub Brand
Kup-L-Tap®

General Product Info

12-Digit UPC
783669532784
Color
Black
Finish
Tin Plated
Product UPC
78366953278
Used With
Class B or C Stranded Conductor
Weight
0.671 lb

Dimensions

Height
4.15 Inch
Length
2.423 Inch
Width
2.815 in
