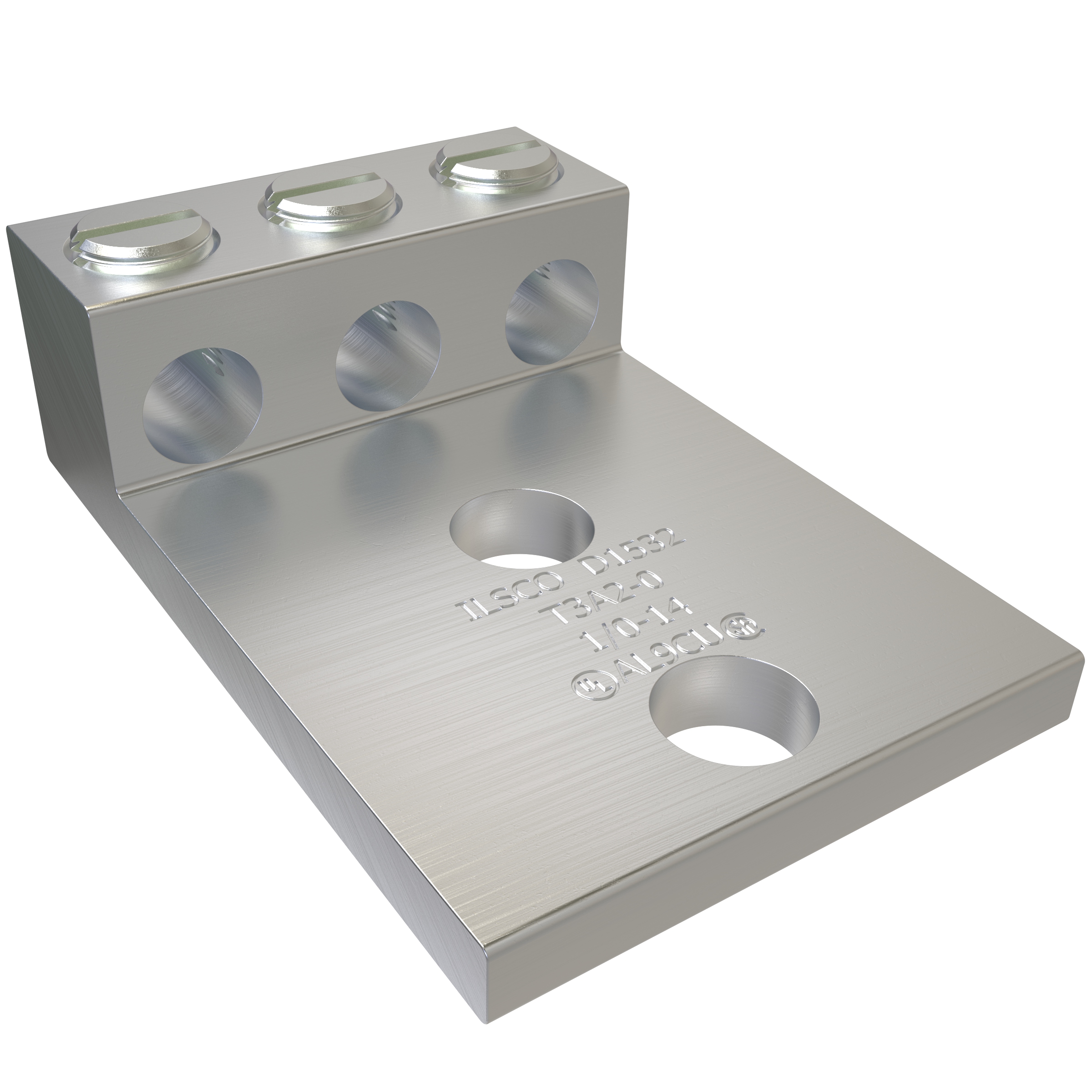

Ilsco T3A2-0 Aluminum Mechanical Lug, Conductor Range 1/0-14, 3 Ports, 2 Holes, 3/8in Bolt Size, Tin Plated, UL, CSA

Manufacturer: Ilsco | Catalog # T3A2-0 | Codale Part # 49191
$47.53/ea
ea
Log in or register to view your price, purchase history, and more!
Experiencing long lead times. Please call for availability.
Primary Spec Sheet
ILSCO Mechanical Lug, Three Conductor, Mechanical connection, Dual Rated, Aluminum material, Tin plated connector,2 mounting hole(s), mounting bolt/stud size 3/8 in, mounting hole spacing 1 in., UL 486A/B Listed, C22.2 No. 65-03, Copper/Aluminum Primary Conductor 1/0 Str - 14 Str and 10 Sol - 14 Sol, 3 conductors, 3 ports/wireways, Drive Type Main Slotted, rated for 35 kV, primary color Silver, 1 poles,

Technical Information

Applications
Mechanical Lug, Three Conductor
Conductor Material
Aluminum,Copper
Conductor Type
Solid,Stranded
Connection Type
Mechanical
Direct Burial?
No
Material
Aluminum
Mounting Hole Size
0.437 in
Number of Conductors
3
Number of Holes
2 Hole
Standard
CSA File Number: LR-29601,UL File Number: E6207,UL Specifications: UL 486A-B
Tc Connection
Mechanical
Temperature Rating
90 degrees C
Type
T3A:3 CONDUCTOR AL/CU
Voltage
35 Volt

Manufacturer Information

Brand
Ilsco
Sub Brand
ILSCO

General Product Info

12-Digit UPC
783669895902
Color
Silver
Finish
Tin Plated
Product UPC
78366989590
Weight
0.246 lb

Dimensions

Height
7/8 Inch
Length
2.96 Inch
Width
1.938 in
