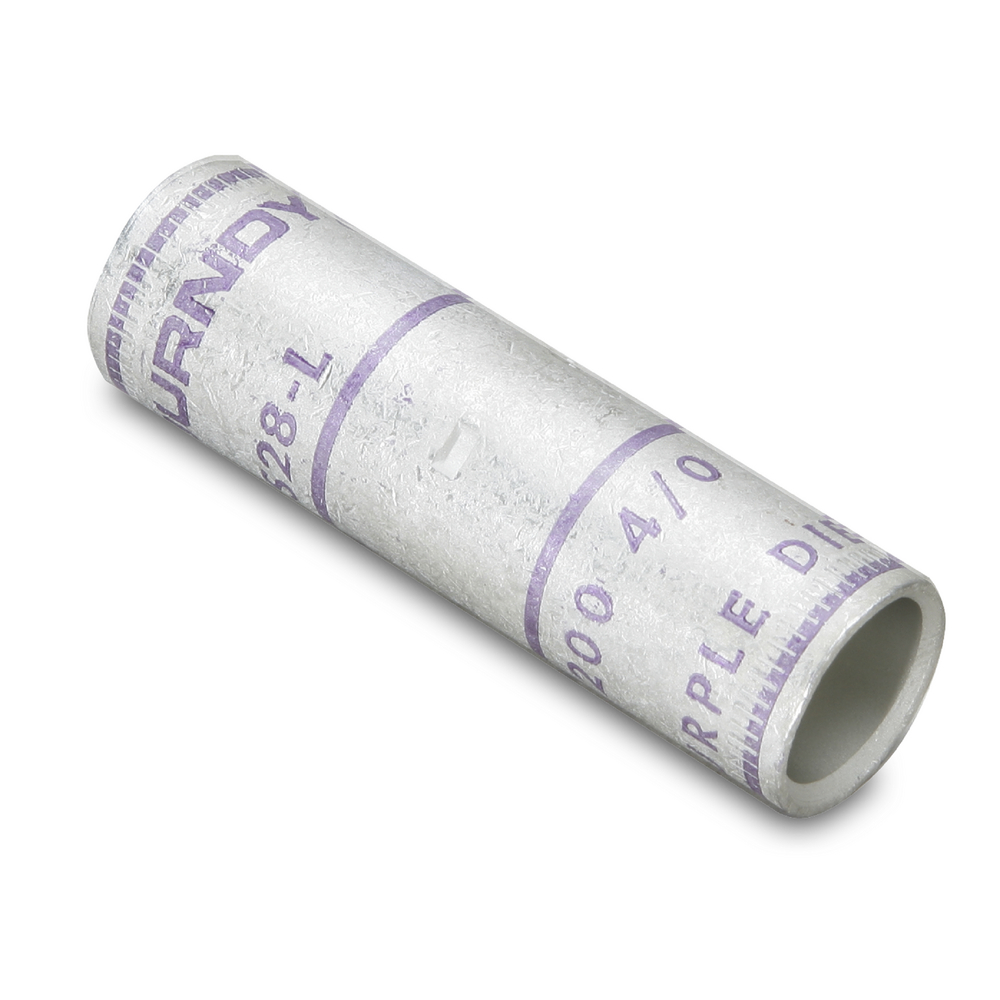

Product image for Burndy YS28LBOX 4/0 AWG CU, Standard Barrel, Internal Chamfer, Tin Plated, UL/CSA, 90.C, Up to 35kV, PURPLE Color Code, 15 Die Index
Image thumbnail 0
Image thumbnail 1
Image thumbnail 2
Email

Burndy YS28LBOX 4/0 AWG CU, Standard Barrel, Internal Chamfer, Tin Plated, UL/CSA, 90.C, Up to 35kV, PURPLE Color Code, 15 Die Index

Manufacturer: Hubbell-Burndy | Catalog # YS28LBOX | Codale Part # 49227
$22.40/ea
ea
Log in or register to view your price, purchase history, and more!
Experiencing long lead times. Please call for availability.
Buy American Compliant Buy American Compliant Primary Spec Sheet
Copper Compression Splice, 4/0 AWG, 2.32" Splice Length, Short Barrel, Tin Plated.

Technical Information

Applications
For Limited Space Applications
Color Coding
Purple
Conductor Size
4/0 AWG
Connection Type
Splice
Material
Copper
Max Voltage
35000 V
Plated?
Yes
Plating Type
Tin - Electro Plated
Size
2.32 IN Length X 1 IN Dimension B
Temperature Rating
90 C
Type
YS-L, Standard Barrel
Voltage
35,000 Volt
Wire Size
0000 AWG

Manufacturer Information

Brand
Burndy
Sub Brand
HYLINK

General Product Info

12-Digit UPC
781810556757
Color
Black
Finish
Tin-Plated,Tin-Plated
Product UPC
78181055675
Weight
0.1000 lb

Dimensions

Height
0.69 Inch
Length
2.32 Inch
Overall Length
2.32 in
Width
0.69 in

Certifications and Compliance

Buy American Compliant
Y
Country of Origin
USA
CSA
Yes
  • Standard Barrel Length: Ideal For Limited Space Applications While Providing Ample Barrel Length For Proper Crimp, Four (4) Center Conductor Stops: Provides A Center Wire Stop For Proper Conductor Insertion, Oil Stop: No, Color Code: Purple, Dieless Tools (number Of Crimps): Y81KFT, Y81KFTMBH, PAT81KFT-18V Tool, (2), Tapered End: No, Die Index: 15 Element A, Wire Strip Length: 1-1/16 IN, Conductor Type: Commercial Stranded Copper, Tools, Die Set Catalog Number, And (number Of Crimps): Mechanical: MD7-34R Tool, W28VT Die, (2), MD6, OUR840 Tool, X28RT Die, (2), Y35, Y39, Y750 Tool, U28RT-1 Die, (1), Y46 Tool, U28RT-1 Die With PUADP-1 Adapter, (1)
