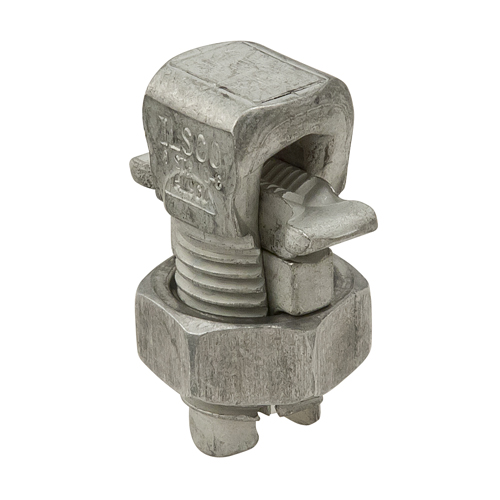

Ilsco AK-6 Aluminum Split Bolt, Main Range 6-10, Tap Range 6-10, Tin Plated, UL, CSA

Manufacturer: Ilsco | Catalog # AK-6 | Codale Part # 492728
$11.13 /ea
ea
Log in or register to view your price, purchase history, and more!
13 available

For Delivery

Not in local stock *
Check your local branch
Primary Spec Sheet
ILSCO Split Bolt, Mechanical connection, Dual Rated, Aluminum material, Tin plated connector, UL 486A/B Listed, C22.2 No. 65, C22.2 No. 188, Copper/Aluminum Primary Conductor 6 Str - 10 Str and 6 Sol - 10 Sol, Copper/Aluminum Secondary Conductor 6 Sol - 10 Sol and 6 Str - 10 Str, 1 conductors, 1 ports/wireways, Drive Type Main 9/16, 3/4 External Hex, rated for 35 kV, primary color Silver, 1 poles,

Technical Information

Applications
Aluminum/Copper Conductors
Conductor Material
Aluminum,Copper
Conductor Type
Solid,Stranded
Connection Type
Mechanical
Direct Burial?
No
Material
Aluminum
Number of Conductors
1
Standard
UL File Number: E9998,CSA File Number: 72632,UL Specifications: UL 486A-B
Tc Connection
Mechanical
Temperature Rating
90 degrees C
Type
AK:AL/CU SPLIT BOLT
Voltage
35 Volt

Packaging

Pkg Qty
100

Manufacturer Information

Brand
Ilsco
Sub Brand
ClearChoice

General Product Info

12-Digit UPC
783669008302
Color
Silver
Finish
Electro-Tin Plated
Product UPC
78366900830
Weight
0.037 lb

Dimensions

Height
0.56 Inch
Length
1.38 Inch
Width
0.75 in
