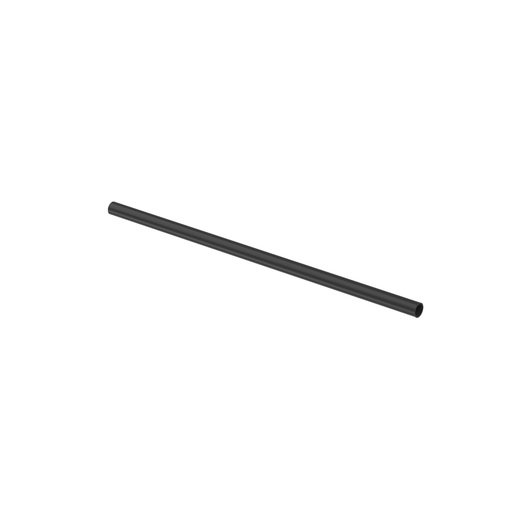

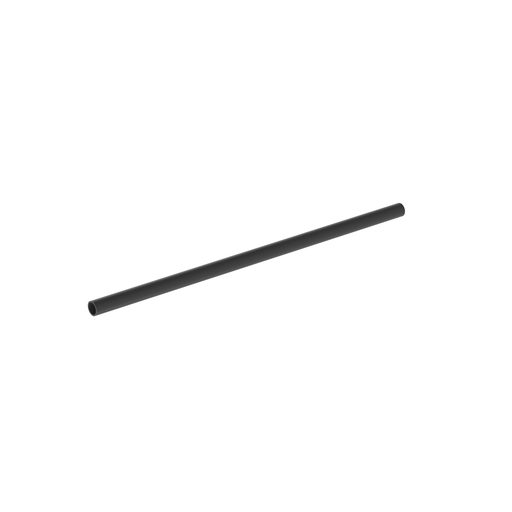

Panduit HSTT19-48-Q .19 Inch 4.8 mm Diameter Black Thin Wall Heat Shrink Tubing

Manufacturer: PANDUIT | Catalog # HSTT19-48-Q | Codale Part # 49360
$6.75/ea
ea
Log in or register to view your price, purchase history, and more!
Experiencing long lead times. Please call for availability.
Prop 65 Warning Prop 65 Warning Buy American Compliant Buy American Compliant Primary Spec Sheet Product Catalog Page Installation / Instruction Manual MDM Safety Data Sheet
The HSTT19-48-Q Thin Wall Heat Shrink Tubing shrinks around wires, connectors, joints, and terminals when heated to protect against abrasion. Applications include insulating and protecting wires/cables in indoor, dry locations. Shrink ratio: 2:1. Temperature range: -67.F to 275.F (-55.C to 135.C). Flame retardant, cross-linked polyolefin. 0.187. Diameter x 4. Long (4.8 mm x 1.2 m). Color Black. 25 per package.

Technical Information

Applications
For Dry Locations
Material
Polyolefin
Max Operating Temperature
135 degrees C
Min Operating Temperature
-55 degrees C
Shrink Ratio
2:1
Standard
Yes
Temperature Rating
-55 to 135 degrees C
Type
Flame Retardant

Packaging

Pkg Qty
25

Manufacturer Information

Brand
Panduit Corp.
Sub Brand
Dry-Shrink

General Product Info

12-Digit UPC
074983905904
Color
Black
Product UPC
07498390590
Weight
0.8350 lb

Dimensions

Inside Diameter
2.4 mm
Outside Diameter
4.8 mm
Overall Length
4 ft
Thickness
0.5 mm

Certifications and Compliance

Buy American Compliant
Y
Country of Origin
China

Certifications & Compliance

Prop 65 Warning
No
Prop 65
  • No
Standards and Certifications
  • Standards Met: UL: E122770; Mil Spec: AMS-DTL-23053/5 Class 1
